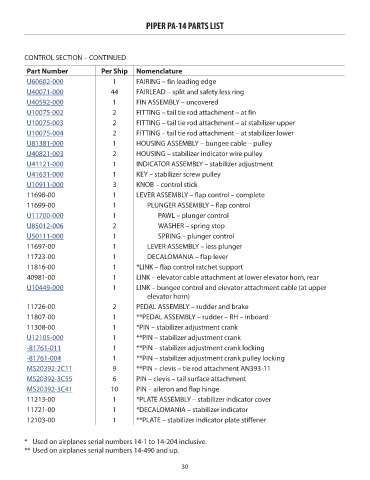

PIPER PA-14 PARTS LIST
CONTROL SECTION – CONTINUED
Part Number Per Ship Nomenclature Price
U60602-000 1 FAIRING – fin leading edge 138.78
U40071-000 44 FAIRLEAD – split and safety less ring 1.45
U40592-000 1 FIN ASSEMBLY – uncovered 623.71
U10075-002 2 FITTING – tail tie rod attachment – at fin 37.32
U10075-003 2 FITTING – tail tie rod attachment – at stabilizer upper 37.32
U10075-004 2 FITTING – tail tie rod attachment – at stabilizer lower 39.21
U81381-000 1 HOUSING ASSEMBLY – bungee cable – pulley 87.54
U40821-003 2 HOUSING – stabilizer indicator wire pulley 14.15
U41121-000 1 INDICATOR ASSEMBLY – stabilizer adjustment 38.27
U41631-000 1 KEY – stabilizer screw pulley 20.01
U10911-000 3 KNOB – control stick 13.71
11698-00 1 LEVER ASSEMBLY – flap control – complete NM!
11699-00 1 PLUNGER ASSEMBLY – flap control NM!
U11700-000 1 PAWL – plunger control 28.85
U85012-006 2 WASHER – spring stop 3.68
U50111-000 1 SPRING – plunger control 4.22
11697-00 1 LEVER ASSEMBLY – less plunger NM!
11723-00 1 DECALOMANIA – flap lever NM!
11816-00 1 *LINK – flap control ratchet support NM!
40981-00 1 LINK – elevator cable attachment at lower elevator horn, rear NM!
U10449-000 1 LINK – bungee control and elevator attachment cable (at upper 37.70
elevator horn)
11726-00 2 PEDAL ASSEMBLY – rudder and brake NM!
11807-00 1 **PEDAL ASSEMBLY – rudder – RH – inboard NM!
11308-00 1 *PIN – stabilizer adjustment crank NM!
U12105-000 1 **PIN – stabilizer adjustment crank 49.62
-81761-011 1 **PIN – stabilizer adjustment crank locking 11.11
-81761-004 1 **PIN – stabilizer adjustment crank pulley locking 13.67
MS20392-2C11 9 **PIN – clevis – tie rod attachment AN393-11 1.10
MS20392-3C55 6 PIN – clevis – tail surface attachment 1.28
MS20392-3C41 10 PIN – aileron and flap hinge 2.50
11213-00 1 *PLATE ASSEMBLY – stabilizer indicator cover NM!
11721-00 1 *DECALOMANIA – stabilizer indicator NM!
12103-00 1 **PLATE – stabilizer indicator plate stiffener NM!
* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
