Page 15 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

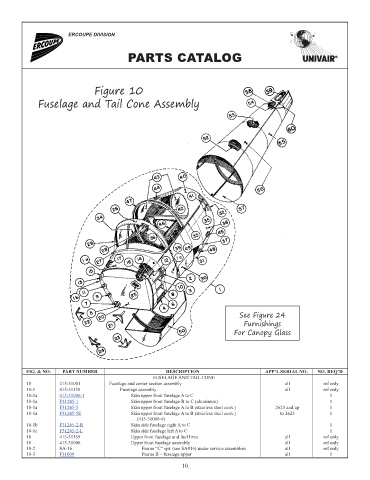

Figure 10

Fuselage and Tail Cone Assembly

See Figure 24
Furnishings
For Canopy Glass

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
FUSELAGE AND TAIL CONE
10 415-31001 Fuselage and center section assembly all ref only NM!
10-1 415-31158 Fuselage assembly all ref only NM!
10-1a 415-31006-1 Skin upper front fuselage A to C 1 386.13
10-1a F31245-1 Skin upper front fuselage B to C (aluminum) 1 250.29
10-1a F31245-5 Skin upper front fuselage A to B (stainless steel conv.) 2623 and up 1 435.75
10-1a F31245-5E Skin upper front fuselage A to B (stainless steel conv.) to 2623 1 455.30
(415-31006-6)
10-1b F31245-2-R Skin side fuselage right A to C 1 715.03
10-1c F31245-2-L Skin side fuselage left A to C 1 715.03
10 415-31159 Upper front fuselage and fuel lines all ref only NM!
10 415-31006 Upper front fuselage assembly all ref only NM!
10-2 SA-16 Frame “C” cpt. (see SA#16) under service assemblies all ref only NM!
10-3 F31009 Frame B – fuselage upper all 1 109.95
10
