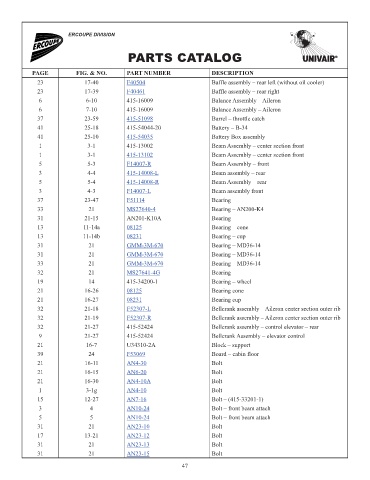

Page 52 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
23 17-40 F40504 Baffle assembly – rear left (without oil cooler) 310.14
23 17-39 F40461 Baffle assembly – rear right 526.46
6 6-10 415-16009 Balance Assembly – Aileron NM!
6 7-10 415-16009 Balance Assembly – Aileron NM!
37 23-59 415-51098 Barrel – throttle catch 227.65
41 25-18 415-54044-20 Battery – B-34 NM!
41 25-10 415-54035 Battery Box assembly 458.89
1 3-1 415-13002 Beam Assembly – center section front NM!
1 3-1 415-13102 Beam Assembly – center section front 17794.32
5 5-3 F14007-R Beam Assembly – front 9985.62
3 4-4 415-14008-L Beam assembly – rear 3319.46
5 5-4 415-14008-R Beam Assembly – rear 3319.46
3 4-3 F14007-L Beam assembly front 9985.62
37 23-47 F51114 Bearing 12.79
33 21 MS27640-4 Bearing – AN200-K4 37.34
31 21-15 AN201-K10A Bearing NM!
13 11-14a 08125 Bearing – cone 49.98
13 11-14b 08231 Bearing – cup 31.18
31 21 GMM-3M-670 Bearing – MD36-14 23.88
31 21 GMM-3M-670 Bearing – MD36-14 23.88
33 21 GMM-3M-670 Bearing – MD36-14 23.88
32 21 MS27641-4G Bearing 37.06
19 14 415-34200-1 Bearing – wheel NM!
21 16-26 08125 Bearing cone 49.98
21 16-27 08231 Bearing cup 31.18
32 21-18 F52307-L Bellcrank assembly – Aileron center section outer rib 860.58
32 21-19 F52307-R Bellcrank assembly – Aileron center section outer rib 860.58
32 21-27 415-52424 Bellcrank assembly – control elevator – rear NM!
9 21-27 415-52424 Bellcrank Assembly – elevator control NM!
21 16-7 U34310-2A Block – support NM!
39 24 F53069 Board – cabin floor 213.27
21 16-11 AN4-30 Bolt 1.49
21 16-15 AN6-20 Bolt 1.31
21 16-30 AN4-10A Bolt 0.26
1 3-1g AN4-10 Bolt 0.78
15 12-27 AN7-16 Bolt – (415-33201-1) 3.30
3 4 AN10-24 Bolt – front beam attach 37.70
5 5 AN10-24 Bolt – front beam attach 37.70
31 21 AN23-10 Bolt 1.82
17 13-21 AN23-12 Bolt 1.70
31 21 AN23-13 Bolt 1.20
31 21 AN23-15 Bolt 1.79
