ERCOUPE DIVISION

PARTS CATALOG

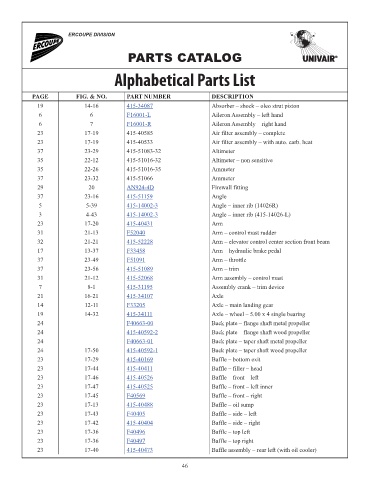

Alphabetical Parts List

PAGE FIG. & NO. PART NUMBER DESCRIPTION
19 14-16 415-34087 Absorber – shock – oleo strut piston 13.15
6 6 F16001-L Aileron Assembly – left hand 2689.93
6 7 F16001-R Aileron Assembly – right hand 2689.93
23 17-19 415-40585 Air filter assembly – complete NM!
23 17-19 415-40533 Air filter assembly – with auto. carb. heat NM!
37 23-29 415-51083-32 Altimeter NM!
35 22-12 415-51016-32 Altimeter – non sensitive NM!
35 22-26 415-51016-35 Ammeter NM!
37 23-32 415-51066 Ammeter NM!
29 20 AN924-4D Firewall fitting 2.14
37 23-16 415-51159 Angle 8.51
5 5-39 415-14002-3 Angle – inner rib (14026R) 42.96
3 4-43 415-14002-3 Angle – inner rib (415-14026-L) 42.96
23 17-20 415-40431 Arm 11.15
31 21-13 F52040 Arm – control mast rudder 124.64
32 21-21 415-52228 Arm – elevator control center section front beam 58.81
17 13-37 F33458 Arm – hydraulic brake pedal 273.18
37 23-49 F51091 Arm – throttle 39.56
37 23-56 415-51089 Arm – trim 11.67
31 21-12 415-52068 Arm assembly – control mast 480.13
7 8-1 415-31195 Assembly crank – trim device 323.78
21 16-21 415-34107 Axle 79.35
14 12-11 F33205 Axle – main landing gear 116.31
19 14-32 415-34111 Axle – wheel – 5.00 x 4 single bearing 405.71
24 F40663-00 Back plate – flange shaft metal propeller 422.28
24 415-40592-2 Back plate – flange shaft wood propeller 249.34
24 F40663-01 Back plate – taper shaft metal propeller 488.25
24 17-50 415-40592-1 Back plate – taper shaft wood propeller 317.11
23 17-29 415-40169 Baffle – bottom exit 101.79
23 17-44 415-40411 Baffle – filler – head 19.69
23 17-46 415-40526 Baffle – front – left 41.31
23 17-47 415-40525 Baffle – front – left inner 21.95
23 17-45 F40569 Baffle – front – right 83.12
23 17-13 415-40488 Baffle – oil sump 500.46
23 17-43 F40405 Baffle – side – left 221.04
23 17-42 415-40404 Baffle – side – right 212.27
23 17-36 F40496 Baffle – top left 150.95
23 17-36 F40497 Baffle – top right 147.26
23 17-40 415-40473 Baffle assembly – rear left (with oil cooler) 736.30
