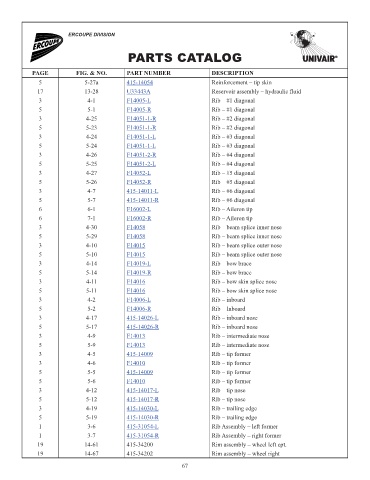

Page 72 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
5 5-27a 415-14054 Reinforcement – tip skin 6.23
17 13-28 U33443A Reservoir assembly – hydraulic fluid 426.07
3 4-1 F14005-L Rib – #1 diagonal 574.23
5 5-1 F14005-R Rib – #1 diagonal 574.23
3 4-25 F14051-1-R Rib – #2 diagonal 209.59
5 5-23 F14051-1-R Rib – #2 diagonal 209.59
3 4-24 F14051-1-L Rib – #3 diagonal 209.59
5 5-24 F14051-1-L Rib – #3 diagonal 209.59
3 4-26 F14051-2-R Rib – #4 diagonal 235.22
5 5-25 F14051-2-L Rib – #4 diagonal 235.22
3 4-27 F14052-L Rib – #5 diagonal 216.59
5 5-26 F14052-R Rib – #5 diagonal 216.59
3 4-7 415-14011-L Rib – #6 diagonal 224.43
5 5-7 415-14011-R Rib – #6 diagonal 224.43
6 6-1 F16002-L Rib – Aileron tip 23.34
6 7-1 F16002-R Rib – Aileron tip 23.34
3 4-30 F14058 Rib – beam splice inner nose 120.47
5 5-29 F14058 Rib – beam splice inner nose 120.47
3 4-10 F14015 Rib – beam splice outer nose 71.14
5 5-10 F14015 Rib – beam splice outer nose 71.14
3 4-14 F14019-L Rib – bow brace 106.67
5 5-14 F14019-R Rib – bow brace 106.67
3 4-11 F14016 Rib – bow skin splice nose 71.14
5 5-11 F14016 Rib – bow skin splice nose 71.14
3 4-2 F14006-L Rib – inboard 349.64
5 5-2 F14006-R Rib – Inboard 349.64
3 4-17 415-14026-L Rib – inboard nose 168.39
5 5-17 415-14026-R Rib – inboard nose 168.39
3 4-9 F14013 Rib – intermediate nose 142.82
5 5-9 F14013 Rib – intermediate nose 142.82
3 4-5 415-14009 Rib – tip former 251.27
3 4-6 F14010 Rib – tip former 192.22
5 5-5 415-14009 Rib – tip former 251.27
5 5-6 F14010 Rib – tip former 192.22
3 4-12 415-14017-L Rib – tip nose 169.20
5 5-12 415-14017-R Rib – tip nose 169.20
3 4-19 415-14030-L Rib – trailing edge 22.31
5 5-19 415-14030-R Rib – trailing edge 22.31
1 3-6 415-31054-L Rib Assembly – left former 14.42
1 3-7 415-31054-R Rib Assembly – right former 14.42
19 14-61 415-34200 Rim assembly – wheel left cpt. NM!
19 14-67 415-34202 Rim assembly – wheel right NM!
67
