FORNEY AIRCOUPE PARTS MANUAL

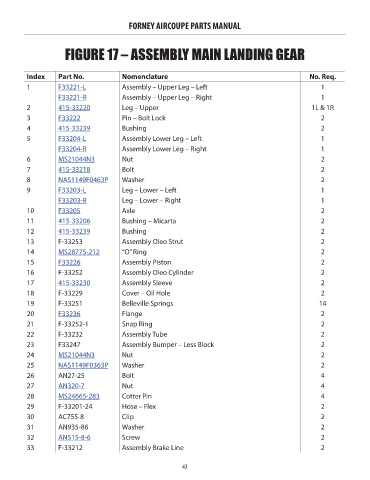

FIGURE 17 – ASSEMBLY MAIN LANDING GEAR
Index Part No. Nomenclature No. Req. Price
1 F33221-L Assembly – Upper Leg – Left 1 646.12
F33221-R Assembly – Upper Leg – Right 1 646.12
2 415-33220 Leg – Upper 1L & 1R 646.12
3 F33222 Pin – Bolt Lock 2 7.68
4 415-33239 Bushing 2 5.67
5 F33204-L Assembly Lower Leg – Left 1 763.60
F33204-R Assembly Lower Leg – Right 1 763.60
6 MS21044N3 Nut 2 0.51
7 415-33218 Bolt 2 13.30
8 NAS1149F0463P Washer 2 0.06
9 F33203-L Leg – Lower – Left 1 599.12
F33203-R Leg – Lower – Right 1 599.12
10 F33205 Axle 2 116.31
11 415-33206 Bushing – Micarta 2 14.75
12 415-33239 Bushing 2 5.67
13 F-33253 Assembly Oleo Strut 2 NM!
14 MS28775-212 “O” Ring 2 0.74
15 F33226 Assembly Piston 2 485.02
16 F-33252 Assembly Oleo Cylinder 2 NM!
17 415-33230 Assembly Sleeve 2 221.96
18 F-33229 Cover – Oil Hole 2 NM!
19 F-33251 Belleville Springs 14 NM!
20 F33236 Flange 2 27.88
21 F-33252-1 Snap Ring 2 NM!
22 F-33232 Assembly Tube 2 NM!
23 F33247 Assembly Bumper – Less Block 2 NM!
24 MS21044N3 Nut 2 0.51
25 NAS1149F0363P Washer 2 0.08
26 AN27-25 Bolt 4 NM!
27 AN320-7 Nut 4 3.55
28 MS24665-283 Cotter Pin 4 0.14
29 F-33201-24 Hose – Flex 2 NM!
30 AC755-8 Clip 2 NM!
31 AN935-86 Washer 2 NM!
32 AN515-8-6 Screw 2 0.17
33 F-33212 Assembly Brake Line 2 NM!
