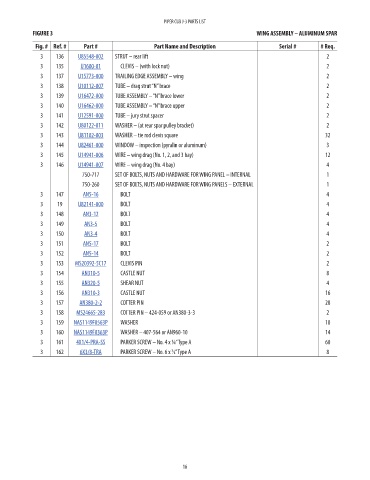

PIPER CUB J-3 PARTS LIST
FIGURE 3 WING ASSEMBLY – ALUMINUM SPAR

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
3 136 U85548-002 STRUT – rear lift 2 755.94
3 135 U1600-01 CLEVIS – (with lock nut) 2 188.87
3 137 U15773-000 TRAILING EDGE ASSEMBLY – wing 2 97.99
3 138 U10112-007 TUBE – drag strut “N” brace 2 102.88
3 139 U16472-000 TUBE ASSEMBLY – “N” brace lower 2 145.48
3 140 U16462-000 TUBE ASSEMBLY – “N” brace upper 2 144.97
3 141 U12591-000 TUBE – jury strut spacer 2 110.46
3 142 U80122-011 WASHER – (at rear spar pulley bracket) 2 1.25
3 143 U81102-003 WASHER – tie rod clevis square 32 5.05
3 144 U82461-000 WINDOW – inspection (pyralin or aluminum) 3 19.87
3 145 U14941-006 WIRE – wing drag (No. 1, 2, and 3 bay) 12 33.37
3 146 U14941-007 WIRE – wing drag (No. 4 bay) 4 39.25
750-717 SET OF BOLTS, NUTS AND HARDWARE FOR WING PANEL – INTERNAL 1 NM!
750-260 SET OF BOLTS, NUTS AND HARDWARE FOR WING PANELS – EXTERNAL 1 NM!
3 147 AN5-16 BOLT 4 1.50
3 19 U82141-000 BOLT 4 29.11
3 148 AN3-12 BOLT 4 1.06
3 149 AN3-5 BOLT 4 0.60
3 150 AN3-4 BOLT 4 1.00
3 151 AN5-17 BOLT 2 1.64
3 152 AN5-14 BOLT 2 0.90

3 153 MS20392-5C17 CLEVIS PIN 2 3.00
3 154 AN310-5 CASTLE NUT 8 2.20
3 155 AN320-5 SHEAR NUT 4 1.00
3 156 AN310-3 CASTLE NUT 16 2.62
3 157 AN380-2-2 COTTER PIN 28 0.04
3 158 MS24665-283 COTTER PIN – 424-059 or AN380-3-3 2 0.14
3 159 NAS1149F0563P WASHER 10 0.18
3 160 NAS1149F0363P WASHER – 407-564 or AN960-10 14 0.08
3 161 4X1/4-PRA-SS PARKER SCREW – No. 4 x ¼” Type A 60 0.02
3 162 6X3/8-TRA PARKER SCREW – No. 6 x ⁄8” Type A 8 0.06
