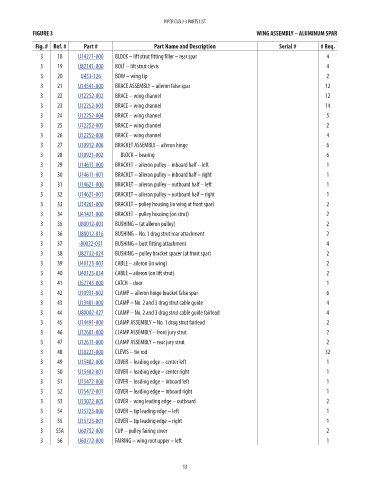

PIPER CUB J-3 PARTS LIST
FIGURE 3 WING ASSEMBLY – ALUMINUM SPAR

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
3 18 U14271-000 BLOCK – lift strut fitting filler – rear spar 4 41.21
3 19 U82141-000 BOLT – lilt strut clevis 4 29.11
3 20 U453-126 BOW – wing tip 2 50.86
3 21 U14541-000 BRACE ASSEMBLY – aileron false spar 12 63.61
3 22 U12252-002 BRACE – wing channel 12 14.33
3 23 U12252-003 BRACE – wing channel 14 18.60
3 24 U12252-004 BRACE – wing channel 5 14.33
3 25 U12252-005 BRACE – wing channel 2 14.33
3 26 U12252-008 BRACE – wing channel 4 16.85
3 27 U10912-006 BRACKET ASSEMBLY – aileron hinge 6 117.22
3 28 U10921-002 BLOCK – bearing 6 35.18
3 29 U14611-000 BRACKET – aileron pulley – inboard half – left 1 16.05
3 30 U14611-001 BRACKET – aileron pulley – inboard half – right 1 18.98
3 31 U14621-000 BRACKET – aileron pulley – outboard half – left 1 46.08
3 32 U14621-001 BRACKET – aileron pulley – outboard half – right 1 46.08
3 33 U14261-000 BRACKET – pulley housing (in wing at front spar) 2 21.32
3 34 U41421-000 BRACKET – pulley housing (on strut) 2 25.75
3 35 U80012-003 BUSHING – (at aileron pulley) 2 6.56
3 36 U80012-016 BUSHING – No. 1 drag strut rear attachment 2 17.05
3 37 -80022-031 BUSHING – butt fitting attachment 4 13.74
3 38 U82732-024 BUSHING – pulley bracket spacer (at front spar) 2 19.37

3 39 U40123-003 CABLE – aileron (in wing) 2 158.09
3 40 U40123-034 CABLE – aileron (on lift strut) 2 196.05
3 41 U52745-000 CATCH – door 1 5.59
3 42 U10931-002 CLAMP – aileron hinge bracket false spar 6 25.27
3 43 U13481-000 CLAMP – No. 2 and 3 drag strut cable guide 4 38.25
3 44 U80002-027 CLAMP – No. 2 and 3 drag strut cable guide fairlead 4 25.78
3 45 U14491-000 CLAMP ASSEMBLY – No. 1 drag strut fairlead 2 71.24
3 46 U12601-000 CLAMP ASSEMBLY – front jury strut 2 98.83
3 47 U12611-000 CLAMP ASSEMBLY – rear jury strut 2 49.62
3 48 U10221-000 CLEVIS – tie rod 32 19.54
3 49 U15482-000 COVER – leading edge – center left 1 202.22
3 50 U15482-001 COVER – leading edge – center right 1 201.21
3 51 U15472-000 COVER – leading edge – inboard left 1 231.79
3 52 U15472-001 COVER – leading edge – inboard right 1 237.04
3 53 U13072-005 COVER – wing leading edge – outboard 2 90.06
3 54 U15723-000 COVER – tip leading edge – left 1 315.28
3 55 U15723-001 COVER – tip leading edge – right 1 315.28
3 55A U60752-000 CUP – pulley fairing cover 2 72.51
3 56 U60772-000 FAIRING – wing root upper – left 1 74.06
