Page 16 - Stinson 108 Series Interactive Digital Parts Catalog

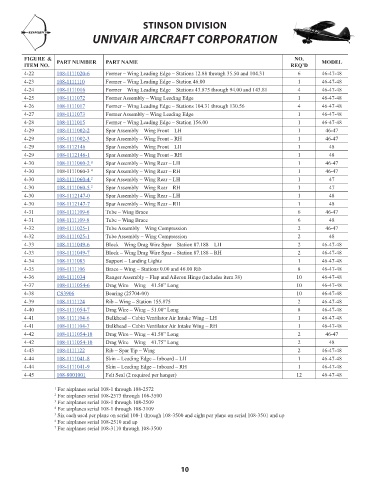

P. 16
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION
FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
4-22 108-1111020-6 Former – Wing Leading Edge – Stations 12.88 through 35.50 and 104.31 6 46-47-48 42.61
4-23 108-1111110 Former – Wing Leading Edge – Station 46.00 1 46-47-48 122.45
4-24 108-1111016 Former – Wing Leading Edge – Stations 43.875 through 94.00 and 143.81 4 46-47-48 80.70
4-25 108-1111072 Former Assembly – Wing Leading Edge 1 46-47-48 163.42
4-26 108-1111017 Former – Wing Leading Edge – Stations 104.31 through 130.56 4 46-47-48 73.74
4-27 108-1111073 Former Assembly – Wing Leading Edge 1 46-47-48 198.93
4-28 108-1111015 Former – Wing Leading Edge – Station 156.00 1 46-47-48 48.67
4-29 108-1111002-2 Spar Assembly – Wing Front – LH 1 46-47 1680.84
4-29 108-1111002-3 Spar Assembly – Wing Front – RH 1 46-47 1680.84
4-29 108-1112146 Spar Assembly – Wing Front – LH 1 48 3076.94
4-29 108-1112146-1 Spar Assembly – Wing Front – RH 1 48 3076.94
4-30 108-1111060-2 4 Spar Assembly – Wing Rear – LH 1 46-47 1005.92
4-30 108-1111060-3 4 Spar Assembly – Wing Rear – RH 1 46-47 NM!
4-30 108-1111060-4 7 Spar Assembly – Wing Rear – LH 1 47 1005.92
4-30 108-1111060-5 7 Spar Assembly – Wing Rear – RH 1 47 1005.92
4-30 108-1112147-0 Spar Assembly – Wing Rear – LH 1 48 2967.06
4-30 108-1112147-7 Spar Assembly – Wing Rear – RH 1 48 1221.71
4-31 108-1111109-6 Tube – Wing Brace 6 46-47 67.69
4-31 108-1111109-8 Tube – Wing Brace 6 48 67.69
4-32 108-1111025-1 Tube Assembly – Wing Compression 2 46-47 335.97
4-32 108-1111025-1 Tube Assembly – Wing Compression 2 48 335.97
4-33 108-1111049-6 Block – Wing Drag Wire Spar – Station 87.188 – LH 2 46-47-48 49.29
4-33 108-1111049-7 Block – Wing Drag Wire Spar – Station 87.188 – RH 2 46-47-48 49.29
4-34 108-1111083 Support – Landing Lights 1 46-47-48 28.39
4-35 108-1111106 Brace – Wing – Stations 0.00 and 46.00 Rib 8 46-47-48 15.84
4-36 108-1111034 Ranger Assembly – Flap and Aileron Hinge (includes item 38) 10 46-47-48 164.02
4-37 108-1111054-6 Drag Wire – Wing – 41.50” Long 10 46-47-48 46.01
4-38 CS3906 Bearing (25704-00) 10 46-47-48 38.74
4-39 108-1111124 Rib – Wing – Station 155.875 2 46-47-48 128.22
4-40 108-1111054-7 Drag Wire – Wing – 51.00” Long 8 46-47-48 100.94
4-41 108-1111104-6 Bulkhead – Cabin Ventilator Air Intake Wing – LH 1 46-47-48 30.18
4-41 108-1111104-7 Bulkhead – Cabin Ventilator Air Intake Wing – RH 1 46-47-48 30.18
4-42 108-1111054-10 Drag Wire – Wing – 41.50” Long 2 46-47 49.29
4-42 108-1111054-10 Drag Wire – Wing – 41.75” Long 2 48 49.29
4-43 108-1111122 Rib – Spar Tip – Wing 2 46-47-48 89.33
4-44 108-1111041-8 Skin – Leading Edge – Inboard – LH 1 46-47-48 578.60
4-44 108-1111041-9 Skin – Leading Edge – Inboard – RH 1 46-47-48 578.60
4-45 108-8001001 Felt Seal (2 required per hanger) 12 46-47-48 2.85
1 For airplanes serial 108-1 through 108-2572
2 For airplanes serial 108-2573 through 108-3500
3 For airplanes serial 108-1 through 108-2509
4 For airplanes serial 108-1 through 108-3109
5 Six each used per plane on serial 108-1 through 108-3500 and eight per plane on serial 108-3501 and up
6 For airplanes serial 108-2510 and up
7 For airplanes serial 108-3110 through 108-3500
10
