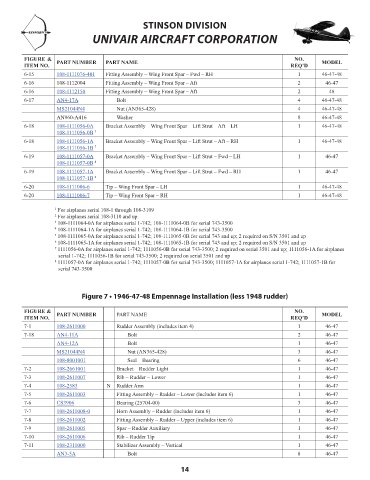

P. 20
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION
FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL
6-15 108-1111076-401 Fitting Assembly – Wing Front Spar – Fwd – RH 1 46-47-48 NM!
6-16 108-1112004 Fitting Assembly – Wing Front Spar – Aft 2 46-47 NM!
6-16 108-1112150 Fitting Assembly – Wing Front Spar – Aft 2 48 185.73
6-17 AN4-17A Bolt 4 46-47-48 0.54
MS21044N4 Nut (AN365-428) 4 46-47-48 0.30
AN960-A416 Washer 8 46-47-48 NM!
6-18 108-1111056-0A Bracket Assembly – Wing Front Spar – Lift Strut – Aft – LH 1 46-47-48 223.49
108-1111056-0B 7
6-18 108-1111056-1A Bracket Assembly – Wing Front Spar – Lift Strut – Aft – RH 1 46-47-48 236.08
108-1111056-1B 7
6-19 108-1111057-0A Bracket Assembly – Wing Front Spar – Lift Strut – Fwd – LH 1 46-47 389.62
108-1111057-0B 8
6-19 108-1111057-1A Bracket Assembly – Wing Front Spar – Lift Strut – Fwd – RH 1 46-47 389.62
108-1111057-1B 8
6-20 108-1111006-6 Tip – Wing Front Spar – LH 1 46-47-48 116.01
6-20 108-1111006-7 Tip – Wing Front Spar – RH 1 46-47-48 116.01
1 For airplanes serial 108-1 through 108-3109
2 For airplanes serial 108-3110 and up
3 108-1111064-0A for airplanes serial 1-742; 108-1111064-0B for serial 743-3500
4 108-1111064-1A for airplanes serial 1-742; 108-1111064-1B for serial 743-3500
5 108-1111065-0A for airplanes serial 1-742; 108-1111065-0B for serial 743 and up; 2 required on S/N 3501 and up
6 108-1111065-1A for airplanes serial 1-742; 108-1111065-1B for serial 743 and up; 2 required on S/N 3501 and up
7 1111056-0A for airplanes serial 1-742; 1111056-0B for serial 743-3500; 2 required on serial 3501 and up; 1111056-1A for airplanes
serial 1-742; 1111056-1B for serial 743-3500; 2 required on serial 3501 and up
8 1111057-0A for airplanes serial 1-742; 1111057-0B for serial 743-3500; 1111057-1A for airplanes serial 1-742; 1111057-1B for
serial 743-3500
Figure 7 • 1946-47-48 Empennage Installation (less 1948 rudder)
FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
7-1 108-2611000 Rudder Assembly (includes item 4) 1 46-47 3897.90
7-18 AN4-11A Bolt 2 46-47 0.62
AN4-12A Bolt 1 46-47 0.36
MS21044N4 Nut (AN365-428) 3 46-47 0.30
108-8001001 Seal – Bearing 6 46-47 2.85
7-2 108-2661001 Bracket – Rudder Light 1 46-47 84.61
7-3 108-2611007 Rib – Rudder – Lower 1 46-47 19.11
7-4 108-2583 N Rudder Arm 1 46-47 181.53
7-5 108-2611003 Fitting Assembly – Rudder – Lower (includes item 6) 1 46-47 191.14
7-6 CS3906 Bearing (25704-00) 3 46-47 38.74
7-7 108-2611008-0 Horn Assembly – Rudder (includes item 6) 1 46-47 226.40
7-8 108-2611002 Fitting Assembly – Rudder – Upper (includes item 6) 1 46-47 82.06
7-9 108-2611005 Spar – Rudder Auxiliary 1 46-47 20.30
7-10 108-2611006 Rib – Rudder Tip 1 46-47 39.45
7-11 108-2311000 Stabilizer Assembly – Vertical 1 46-47 4653.60
AN3-5A Bolt 8 46-47 0.26
