P. 17
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

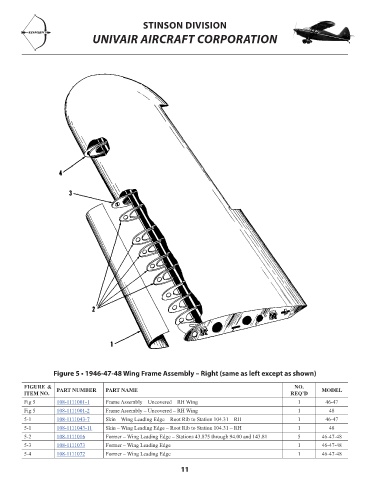

Figure 5 • 1946-47-48 Wing Frame Assembly – Right (same as left except as shown)
FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL
Fig 5 108-1111001-1 Frame Assembly – Uncovered – RH Wing 1 46-47 20977.79
Fig 5 108-1111001-2 Frame Assembly – Uncovered – RH Wing 1 48 20977.79
5-1 108-1111043-7 Skin – Wing Leading Edge – Root Rib to Station 104.31 – RH 1 46-47 516.93
5-1 108-1111043-11 Skin – Wing Leading Edge – Root Rib to Station 104.31 – RH 1 48 585.07
5-2 108-1111016 Former – Wing Leading Edge – Stations 43.875 through 94.00 and 143.81 5 46-47-48 80.70
5-3 108-1111073 Former – Wing Leading Edge 1 46-47-48 198.93
5-4 108-1111072 Former – Wing Leading Edge 1 46-47-48 163.42
11
