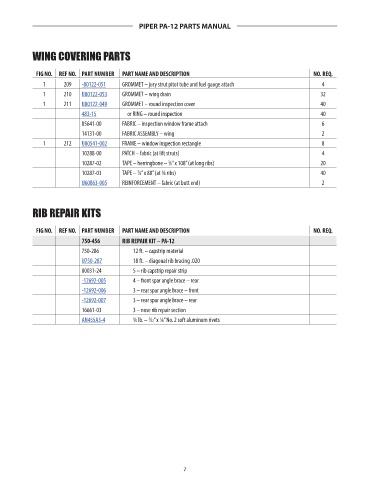

PIPER PA-12 PARTS MANUAL




            WING COVERING PARTS


             FIG NO. REF NO. PART NUMBER  PART NAME AND DESCRIPTION                                      NO. REQ.                              PRICE
               1      209   -80122-051   GROMMET – jury strut pitot tube and fuel gauge attach             4                                   4.37

               1      210   U80122-053   GROMMET – wing drain                                              32                                  4.09
               1      211   U80122-049   GROMMET – round inspection cover                                  40                                   5.7
                            483-15            or RING – round inspection                                   40                                  1.01
                            85641-00     FABRIC – inspection window frame attach                           6                                   NM!
                            14131-00     FABRIC ASSEMBLY – wing                                            2                                   NM!
               1      212   U80541-002   FRAME – window inspection rectangle                               8                                   14.81
                            10288-00     PATCH – fabric (at lift struts)                                   4                                   NM!
                            10287-02     TAPE – herringbone –  ⁄8” x 108” (at long ribs)                   20                                  NM!
                                                         3
                                               3
                            10287-03     TAPE –  ⁄8” x 88” (at ¾ ribs)                                     40                                  NM!
                            U60863-005   REINFORCEMENT – fabric (at butt end)                              2                                   9.18



            RIB REPAIR KITS



             FIG NO. REF NO. PART NUMBER  PART NAME AND DESCRIPTION                                      NO. REQ.                              PRICE
                            750-456      RIB REPAIR KIT – PA-12                                                                                NM!
                            750-286          12 ft. – capstrip material                                                                        NM!
                            U750-287         18 ft. – diagonal rib bracing .020                                                                14.5
                            00031-24         5 – rib capstrip repair strip                                                                     NM!
                            -12692-005       4 – front spar angle brace – rear                                                                 10.57
                            -12692-006       3 – rear spar angle brace – front                                                                  11
                            -12692-007       3 – rear spar angle brace – rear                                                                  11.6
                            16661-03         3 – nose rib repair section                                                                       NM!
                            AN455A3-4        ¼ lb. –  ⁄32” x ¼” No. 2 soft aluminum rivets                                                     3.67
                                                  3




























                                                              7
   6   7   8   9   10   11   12   13   14   15   16
