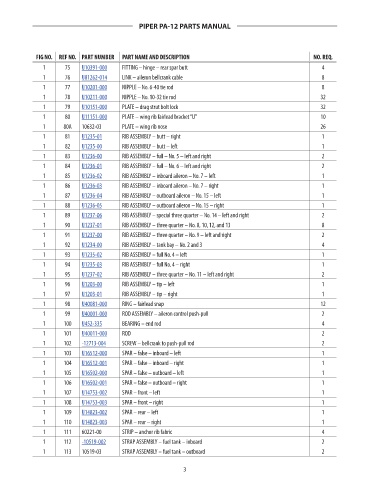

PIPER PA-12 PARTS MANUAL

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
1 75 U10391-000 FITTING – hinge – rear spar butt 4 49.28
1 76 U81262-014 LINK – aileron bellcrank cable 8 4.49
1 77 U10201-000 NIPPLE – No. 6-40 tie rod 8 9.85
1 78 U10211-000 NIPPLE – No. 10-32 tie rod 32 38.01
1 79 U10151-000 PLATE – drag strut bolt lock 32 2.59
1 80 U11151-000 PLATE – wing rib fairlead bracket “U” 10 7.53
1 80A 10632-03 PLATE – wing rib nose 26 NM!
1 81 U1235-01 RIB ASSEMBLY – butt – right 1 315.13
1 82 U1235-00 RIB ASSEMBLY – butt – left 1 211.14
1 83 U1236-00 RIB ASSEMBLY – full – No. 5 – left and right 2 116.06
1 84 U1236-01 RIB ASSEMBLY – full – No. 6 – left and right 2 128.45
1 85 U1236-02 RIB ASSEMBLY – inboard aileron – No. 7 – left 1 121.07

1 86 U1236-03 RIB ASSEMBLY – inboard aileron – No. 7 – right 1 129.48
1 87 U1236-04 RIB ASSEMBLY – outboard aileron – No. 15 – left 1 165.50
1 88 U1236-05 RIB ASSEMBLY – outboard aileron – No. 15 – right 1 121.07
1 89 U1237-06 RIB ASSEMBLY – special three quarter – No. 14 – left and right 2 112.27
1 90 U1237-01 RIB ASSEMBLY – three quarter – No. 8, 10, 12, and 13 8 165.97
1 91 U1237-00 RIB ASSEMBLY – three quarter – No. 9 – left and right 2 165.97
1 92 U1234-00 RIB ASSEMBLY – tank bay – No. 2 and 3 4 123.78
1 93 U1235-02 RIB ASSEMBLY – full No. 4 – left 1 112.39
1 94 U1235-03 RIB ASSEMBLY – full No. 4 – right 1 112.39
1 95 U1237-02 RIB ASSEMBLY – three quarter – No. 11 – left and right 2 155.63
1 96 U1203-00 RIB ASSEMBLY – tip – left 1 110.23
1 97 U1203-01 RIB ASSEMBLY – tip – right 1 96.14
1 98 U40081-000 RING – fairlead snap 12 0.41
1 99 U40001-000 ROD ASSEMBLY – aileron control push-pull 2 159.07
1 100 U452-335 BEARING – end rod 4 39.40
1 101 U40011-000 ROD 2 48.05
1 102 -12713-004 SCREW – bellcrank to push-pull rod 2 2.23
1 103 U16512-000 SPAR – false – inboard – left 1 111.89
1 104 U16512-001 SPAR – false – inboard – right 1 111.89
1 105 U16502-000 SPAR – false – outboard – left 1 76.94
1 106 U16502-001 SPAR – false – outboard – right 1 76.94
1 107 U14753-002 SPAR – front – left 1 450.48
1 108 U14753-003 SPAR – front – right 1 450.48
1 109 U14823-002 SPAR – rear – left 1 400.84
1 110 U14823-003 SPAR – rear – right 1 400.84
1 111 60221-00 STRIP – anchor rib fabric 4 NM!
1 112 -10519-002 STRAP ASSEMBLY – fuel tank – inboard 2 74.69
1 113 10519-03 STRAP ASSEMBLY – fuel tank – outboard 2 NM!

3
