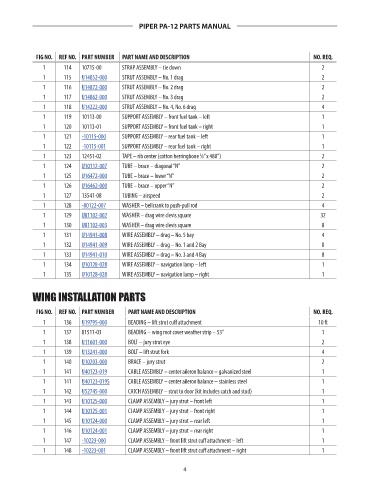

PIPER PA-12 PARTS MANUAL

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
1 114 10715-00 STRAP ASSEMBLY – tie down 2 NM!
1 115 U14852-000 STRUT ASSEMBLY – No. 1 drag 2 508.46
1 116 U14872-000 STRUT ASSEMBLY – No. 2 drag 2 181.35
1 117 U14862-000 STRUT ASSEMBLY – No. 3 drag 2 403.66
1 118 U14222-000 STRUT ASSEMBLY – No. 4, No. 6 drag 4 192.72
1 119 10113-00 SUPPORT ASSEMBLY – front fuel tank – left 1 NM!
1 120 10113-01 SUPPORT ASSEMBLY – front fuel tank – right 1 NM!
1 121 -10115-000 SUPPORT ASSEMBLY – rear fuel tank – left 1 161.66
1 122 -10115-001 SUPPORT ASSEMBLY – rear fuel tank – right 1 173.96
1 123 12451-02 TAPE – rib center (cotton herringbone ⁄8” x 480”) 2 NM!
3
1 124 U10112-007 TUBE – brace – diagonal “N” 2 102.88
1 125 U16472-000 TUBE – brace – lower “N” 2 145.48

1 126 U16462-000 TUBE – brace – upper “N” 2 144.97
1 127 13541-08 TUBING – airspeed 2 NM!
1 128 -80122-007 WASHER – bellcrank to push-pull rod 4 9.53
1 129 U81102-002 WASHER – drag wire clevis square 32 6.74
1 130 U81102-003 WASHER – drag wire clevis square 8 5.05
1 131 U14941-008 WIRE ASSEMBLY – drag – No. 5 bay 4 43.82
1 132 U14941-009 WIRE ASSEMBLY – drag – No. 1 and 2 Bay 8 69.94
1 133 U14941-010 WIRE ASSEMBLY – drag – No. 3 and 4 Bay 8 50.36
1 134 U10128-028 WIRE ASSEMBLY – navigation lamp – left 1 39.21
1 135 U10128-028 WIRE ASSEMBLY – navigation lamp – right 1 39.21

WING INSTALLATION PARTS

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
1 136 U19795-000 BEADING – lift strut cuff attachment 10 ft 29.86
1 137 81511-03 BEADING – wing root cover weather strip – 53” 1 NM!
1 138 U11601-000 BOLT – jury strut eye 2 62.43
1 139 U13241-000 BOLT – lift strut fork 4 19.20
1 140 U10203-000 BRACE – jury strut 2 145.75
1 141 U40123-019 CABLE ASSEMBLY – center aileron balance – galvanized steel 1 138.88
1 141 U40123-019S CABLE ASSEMBLY – center aileron balance – stainless steel 1 207.35
1 142 U52745-000 CATCH ASSEMBLY – strut to door (kit includes catch and stud) 1 5.59
1 143 U10125-000 CLAMP ASSEMBLY – jury strut – front left 1 148.30
1 144 U10125-001 CLAMP ASSEMBLY – jury strut – front right 1 186.09
1 145 U10124-000 CLAMP ASSEMBLY – jury strut – rear left 1 217.97
1 146 U10124-001 CLAMP ASSEMBLY – jury strut – rear right 1 211.67
1 147 -10223-000 CLAMP ASSEMBLY – front lift strut cuff attachment – left 1 97.63
1 148 -10223-001 CLAMP ASSEMBLY – front lift strut cuff attachment – right 1 47.69

4
