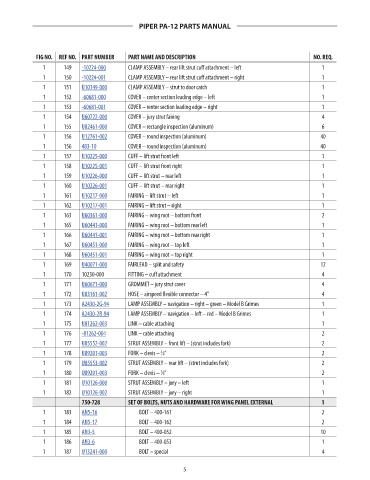

PIPER PA-12 PARTS MANUAL





             FIG NO. REF NO. PART NUMBER   PART NAME AND DESCRIPTION                                     NO. REQ.                              PRICE
               1      149   -10224-000     CLAMP ASSEMBLY – rear lift strut cuff attachment – left         1                                  116.00
               1      150   -10224-001     CLAMP ASSEMBLY – rear lift strut cuff attachment – right        1                                   44.75
               1      151   U10149-000     CLAMP ASSEMBLY – strut to door catch                            1                                  140.19
               1      152   -60681-000     COVER – center section leading edge – left                      1                                   43.66
               1      153   -60681-001     COVER – renter section leading edge – right                     1                                   43.66
               1      154   U60722-000     COVER – jury strut fairing                                      4                                  234.97
               1      155   U82461-000     COVER – rectangle inspection (aluminum)                         6                                   15.13
               1      156   U12761-002     COVER – round inspection (aluminum)                             40                                  39.35
               1      156   483-10         COVER – round inspection (aluminum)                             40                                  2.25
               1      157   U10225-000     CUFF – lift strut front left                                    1                                   92.51
               1      158   U10225-001     CUFF – lift strut front right                                   1                                   92.51
               1      159   U10226-000     CUFF – lift strut – rear left                                   1                                   89.64

               1      160   U10226-001     CUFF – lift strut – rear right                                  1                                   89.64
               1      161   U10217-000     FAIRING – lift strut – left                                     1                                  140.51
               1      162   U10217-001     FAIRING – lift strut – right                                    1                                  140.51
               1      163   U60361-000     FAIRING – wing root – bottom front                              2                                   22.42
               1      165   U60441-000     FAIRING – wing root – bottom rear left                          1                                   41.02
               1      166   U60441-001     FAIRING – wing root – bottom rear right                         1                                   41.02
               1      167   U60451-000     FAIRING – wing root – top left                                  1                                   55.12
               1      168   U60451-001     FAIRING – wing root – top right                                 1                                   55.12
               1      169   U40071-000     FAIRLEAD – split and safety                                     12                                  1.11
               1      170   10230-000      FITTING – cuff attachment                                       4                                   NM!
               1      171   U60671-000     GROMMET – jury strut cover                                      4                                   9.76
               1      172   -83161-002     HOSE – airspeed flexible connector – 4”                         4                                   3.20
               1      173   A2430-2G-94    LAMP ASSEMBLY – navigation – right – green – Model B Grimes     1                                  209.37
               1      174   A2430-2R-94    LAMP ASSEMBLY – navigation – left – red – Model B Grimes        1                                  248.12
               1      175   U81262-003     LINK – cable attaching                                          1                                   25.50
               1      176   -81262-004     LINK – cable attaching                                          2                                   22.94
               1      177   U85552-002     STRUT ASSEMBLY – front lift – (strut includes fork)             2                                  600.78
                                                      5
               1      178   U89201-003     FORK – clevis –  ⁄8”                                            2                                  125.05
               1      179   U85553-002     STRUT ASSEMBLY – rear lift – (strut includes fork)              2                                  600.78
               1      180   U89201-003     FORK – clevis –  ⁄8”                                            2                                  125.05
                                                      5
               1      181   U10126-000     STRUT ASSEMBLY – jury – left                                    1                                  570.48
               1      182   U10126-002     STRUT ASSEMBLY – jury – right                                   1                                  343.10
                            750-728        SET OF BOLTS, NUTS AND HARDWARE FOR WING PANEL EXTERNAL         1                                   NM!
               1      183   AN5-16             BOLT – 400-161                                              2                                   1.03
               1      184   AN5-17             BOLT – 400-162                                              2                                   1.00
               1      185   AN3-5              BOLT – 400-052                                              10                                  0.50
               1      186   AN3-6              BOLT – 400-053                                              1                                   0.50
               1      187   U13241-000         BOLT – special                                              4                                   14.62


                                                              5
