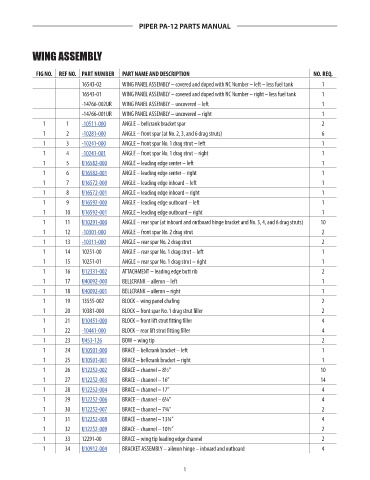

PIPER PA-12 PARTS MANUAL

WING ASSEMBLY

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
16543-02 WING PANEL ASSEMBLY – covered and doped with NC Number – left – less fuel tank 1 NM!

16543-01 WING PANEL ASSEMBLY – covered and doped with NC Number – right – less fuel tank 1 NM!
-14766-002UR WING PANEL ASSEMBLY – uncovered – left 1 NM!
-14766-001UR WING PANEL ASSEMBLY – uncovered – right 1 NM!
1 1 -10511-000 ANGLE – bellcrank bracket spar 2 13.76
1 2 -10281-000 ANGLE – front spar (at No. 2, 3, and 6 drag struts) 6 11.67
1 3 -10241-000 ANGLE – front spar No. 1 drag strut – left 1 28.61
1 4 -10241-001 ANGLE – front spar No. 1 drag strut – right 1 28.61
1 5 U16582-000 ANGLE – leading edge center – left 1 46.46
1 6 U16582-001 ANGLE – leading edge center – right 1 46.46
1 7 U16572-000 ANGLE – leading edge inboard – left 1 45.08
1 8 U16572-001 ANGLE – leading edge inboard – right 1 45.08
1 9 U16592-000 ANGLE – leading edge outboard – left 1 37.70
1 10 U16592-001 ANGLE – leading edge outboard – right 1 37.70
1 11 U10291-000 ANGLE – rear spar (at inboard and outboard hinge bracket and No. 3, 4, and 6 drag struts) 10 26.29
1 12 -10301-000 ANGLE – front spar No. 2 drag strut 2 28.97
1 13 -10311-000 ANGLE – rear spar No. 2 drag strut 2 33.01
1 14 10251-00 ANGLE – rear spar No. 1 drag strut – left 1 NM!
1 15 10251-01 ANGLE – rear spar No. 1 drag strut – right 1 NM!
1 16 U12331-002 ATTACHMENT – leading edge butt rib 2 6.15
1 17 U40092-000 BELLCRANK – aileron – left 1 377.67
1 18 U40092-001 BELLCRANK – aileron – right 1 377.67
1 19 13555-002 BLOCK – wing panel chafing 2 NM!
1 20 10381-000 BLOCK – front spar No. 1 drag strut filler 2 NM!
1 21 U10451-000 BLOCK – front lift strut fitting filler 4 84.00
1 22 -10441-000 BLOCK – rear lift strut fitting filler 4 150.51
1 23 U453-126 BOW – wing tip 2 50.86
1 24 U10501-000 BRACE – bellcrank bracket – left 1 89.47
1 25 U10501-001 BRACE – bellcrank bracket – right 1 89.47

1 26 U12252-002 BRACE – channel – 8½” 10 14.33
1 27 U12252-003 BRACE – channel – 16” 14 18.60
1 28 U12252-004 BRACE – channel – 17” 4 14.33
1 29 U12252-006 BRACE – channel – 6¼” 4 15.54
1 30 U12252-007 BRACE – channel – 7¾” 2 14.33
1 31 U12252-008 BRACE – channel – 13¾” 4 16.85
1 32 U12252-009 BRACE – channel – 10½” 2 14.33
1 33 12291-00 BRACE – wing tip leading edge channel 2 NM!
1 34 U10912-004 BRACKET ASSEMBLY – aileron hinge – inboard and outboard 4 140.12
