Page 4 - Piper PA-16 Clipper Parts Catalog
P. 4

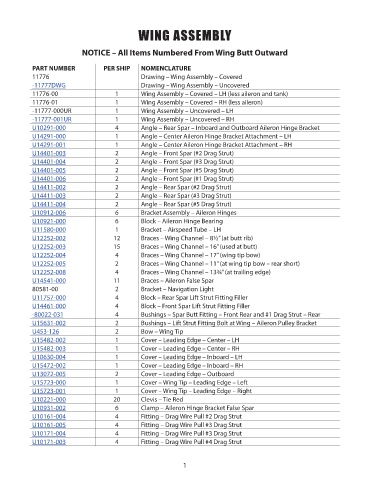

WING ASSEMBLY
NOTICE – All Items Numbered From Wing Butt Outward
PART NUMBER PER SHIP NOMENCLATURE PRICE
11776 Drawing – Wing Assembly – Covered NM!
-11777DWG Drawing – Wing Assembly – Uncovered 72.72
11776-00 1 Wing Assembly – Covered – LH (less aileron and tank) NM!
11776-01 1 Wing Assembly – Covered – RH (less aileron) NM!
-11777-000UR 1 Wing Assembly – Uncovered – LH NM!
-11777-001UR 1 Wing Assembly – Uncovered – RH 12403.06
U10291-000 4 Angle – Rear Spar – Inboard and Outboard Aileron Hinge Bracket 26.29
U14291-000 1 Angle – Center Aileron Hinge Bracket Attachment – LH 23.54
U14291-001 1 Angle – Center Aileron Hinge Bracket Attachment – RH 23.13
U14401-003 2 Angle – Front Spar (#2 Drag Strut) 26.11
U14401-004 2 Angle – Front Spar (#3 Drag Strut) 14.49
U14401-005 2 Angle – Front Spar (#5 Drag Strut) 27.08
U14401-006 2 Angle – Front Spar (#1 Drag Strut) 11.75
U14411-002 2 Angle – Rear Spar (#2 Drag Strut) 15.05
U14411-003 2 Angle – Rear Spar (#3 Drag Strut) 19.06
U14411-004 2 Angle – Rear Spar (#5 Drag Strut) 14.05
U10912-006 6 Bracket Assembly – Aileron Hinges 117.22
U10921-000 6 Block – Aileron Hinge Bearing 27.54
U11580-000 1 Bracket – Airspeed Tube – LH 20.28
U12252-002 12 Braces – Wing Channel – 8½” (at butt rib) 14.33
U12252-003 15 Braces – Wing Channel – 16” (used at butt) 18.60
U12252-004 4 Braces – Wing Channel – 17” (wing tip bow) 14.33
U12252-005 2 Braces – Wing Channel – 11” (at wing tip bow – rear short) 14.33
U12252-008 4 Braces – Wing Channel – 13¾” (at trailing edge) 16.85
U14541-000 11 Braces – Aileron False Spar 63.61
80581-00 2 Bracket – Navigation Light NM!
U11757-000 4 Block – Rear Spar Lift Strut Fitting Filler 62.31
U14461-000 4 Block – Front Spar Lift Strut Fitting Filler 56.02
-80022-031 4 Bushings – Spar Butt Fitting – Front Rear and #1 Drag Strut – Rear 13.74
U15631-002 2 Bushings – Lift Strut Fitting Bolt at Wing – Aileron Pulley Bracket 20.01
U453-126 2 Bow – Wing Tip 50.86
U15482-002 1 Cover – Leading Edge – Center – LH 265.60
U15482-003 1 Cover – Leading Edge – Center – RH 262.10
U10630-004 1 Cover – Leading Edge – Inboard – LH 213.48
U15472-002 1 Cover – Leading Edge – Inboard – RH 135.00
U13072-005 2 Cover – Leading Edge – Outboard 90.06
U15723-000 1 Cover – Wing Tip – Leading Edge – Left 315.28
U15723-001 1 Cover – Wing Tip – Leading Edge – Right 315.28
U10221-000 20 Clevis – Tie Red 19.54
U10931-002 6 Clamp – Aileron Hinge Bracket False Spar 25.27
U10161-004 4 Fitting – Drag Wire Pull #2 Drag Strut 17.24
U10161-005 4 Fitting – Drag Wire Pull #3 Drag Strut 17.24
U10171-004 4 Fitting – Drag Wire Pull #3 Drag Strut 8.03
U10171-003 4 Fitting – Drag Wire Pull #4 Drag Strut 8.03
1
