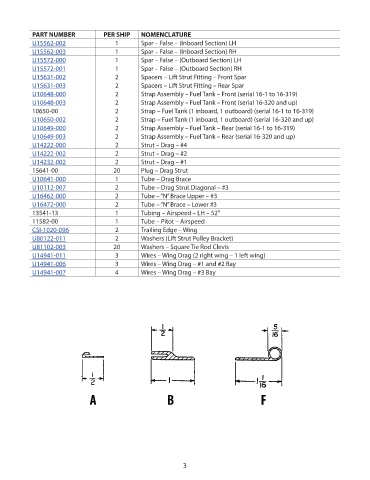

Page 6 - Piper PA-16 Clipper Parts Catalog

PART NUMBER PER SHIP NOMENCLATURE PRICE
U15562-002 1 Spar – False – (Inboard Section) LH 85.16
U15562-003 1 Spar – False – (Inboard Section) RH 85.16
U15572-000 1 Spar – False – (Outboard Section) LH 72.74
U15572-001 1 Spar – False – (Outboard Section) RH 72.74
U15631-002 2 Spacers – Lift Strut Fitting – Front Spar 20.01
U15631-003 2 Spacers – Lift Strut Fitting – Rear Spar 20.01
U10648-000 2 Strap Assembly – Fuel Tank – Front (serial 16-1 to 16-319) 91.63
U10648-003 2 Strap Assembly – Fuel Tank – Front (serial 16-320 and up) 57.28
10650-00 2 Strap – Fuel Tank (1 inboard, 1 outboard) (serial 16-1 to 16-319) NM!
U10650-002 2 Strap – Fuel Tank (1 inboard, 1 outboard) (serial 16-320 and up) 76.98
U10649-000 2 Strap Assembly – Fuel Tank – Rear (serial 16-1 to 16-319) 108.54
U10649-003 2 Strap Assembly – Fuel Tank – Rear (serial 16-320 and up) 95.98
U14222-000 2 Strut – Drag – #4 192.72
U14222-002 2 Strut – Drag – #2 185.52
U14232-002 2 Strut – Drag – #1 198.78
15641-00 20 Plug – Drag Strut NM!
U10641-000 1 Tube – Drag Brace 131.42
U10112-007 2 Tube – Drag Strut Diagonal – #3 102.88
U16462-000 2 Tube – “N” Brace Upper – #3 144.97
U16472-000 2 Tube – “N” Brace – Lower #3 145.48
13541-13 1 Tubing – Airspeed – LH – 52” NM!
11582-00 1 Tube – Pitot – Airspeed NM!
CSI-1020-096 2 Trailing Edge – Wing 124.38
U80122-011 2 Washers (Lift Strut Pulley Bracket) 1.25
U81102-003 20 Washers – Square Tie Rod Clevis 5.05
U14941-011 3 Wires – Wing Drag (2 right wing – 1 left wing) 121.42
U14941-006 3 Wires – Wing Drag – #1 and #2 Bay 33.37
U14941-007 4 Wires – Wing Drag – #3 Bay 39.25

3
