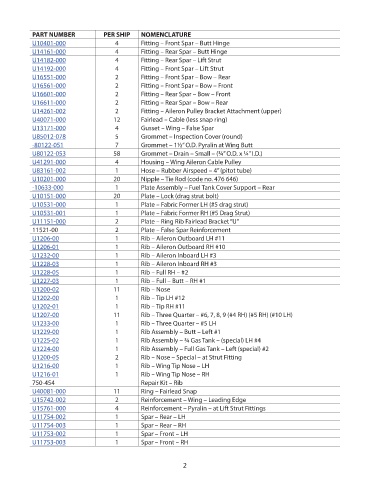

Page 5 - Piper PA-16 Clipper Parts Catalog

PART NUMBER PER SHIP NOMENCLATURE PRICE
U10401-000 4 Fitting – Front Spar – Butt Hinge 50.54
U14161-000 4 Fitting – Rear Spar – Butt Hinge 39.95
U14182-000 4 Fitting – Rear Spar – Lift Strut 39.07
U14192-000 4 Fitting – Front Spar – Lift Strut 57.19
U16551-000 2 Fitting – Front Spar – Bow – Rear 23.50
U16561-000 2 Fitting – Front Spar – Bow – Front 17.00
U16601-000 2 Fitting – Rear Spar – Bow – Front 17.16
U16611-000 2 Fitting – Rear Spar – Bow – Rear 13.13
U14261-002 2 Fitting – Aileron Pulley Bracket Attachment (upper) 88.07
U40071-000 12 Fairlead – Cable (less snap ring) 1.45
U13171-000 4 Gusset – Wing – False Spar 41.32
U85012-078 5 Grommet – Inspection Cover (round) 9.91
-80122-051 7 Grommet – 1½” O.D. Pyralin at Wing Butt 4.37
U80122-053 58 Grommet – Drain – Small – (¾” O.D. x ¼” I.D.) 4.52
U41291-000 4 Housing – Wing Aileron Cable Pulley 61.65
U83161-002 1 Hose – Rubber Airspeed – 4” (pitot tube) 7.77
U10201-000 20 Nipple – Tie Rod (code no. 476 646) 12.94
-10633-000 1 Plate Assembly – Fuel Tank Cover Support – Rear 85.80
U10151-000 20 Plate – Lock (drag strut bolt) 3.40
U10531-000 1 Plate – Fabric Former LH (#5 drag strut) 73.61
U10531-001 1 Plate – Fabric Former RH (#5 Drag Strut) 100.20
U11151-000 2 Plate – Ring Rib Fairlead Bracket “U” 9.88
11521-00 2 Plate – False Spar Reinforcement NM!
U1206-00 1 Rib – Aileron Outboard LH #11 238.60
U1206-01 1 Rib – Aileron Outboard RH #10 220.47
U1232-00 1 Rib – Aileron Inboard LH #3 115.07
U1228-03 1 Rib – Aileron Inboard RH #3 156.16
U1228-05 1 Rib – Full RH – #2 143.59
U1227-03 1 Rib – Full – Butt – RH #1 191.74
U1200-02 11 Rib – Nose 32.76
U1202-00 1 Rib – Tip LH #12 208.37
U1202-01 1 Rib – Tip RH #11 197.06
U1207-00 11 Rib – Three Quarter – #6, 7, 8, 9 (#4 RH) (#5 RH) (#10 LH) 185.63
U1233-00 1 Rib – Three Quarter – #5 LH 141.89
U1229-00 1 Rib Assembly – Butt – Left #1 194.48
U1225-02 1 Rib Assembly – ¾ Gas Tank – (special) LH #4 179.08
U1224-00 1 Rib Assembly – Full Gas Tank – Left (special) #2 173.59
U1200-05 2 Rib – Nose – Special – at Strut Fitting 46.08
U1216-00 1 Rib – Wing Tip Nose – LH 35.27
U1216-01 1 Rib – Wing Tip Nose – RH 52.56
750-454 Repair Kit – Rib NM!
U40081-000 11 Ring – Fairlead Snap 0.54
U15742-002 2 Reinforcement – Wing – Leading Edge 75.77
U15761-000 4 Reinforcement – Pyralin – at Lift Strut Fittings 9.61
U11754-002 1 Spar – Rear – LH 798.00
U11754-003 1 Spar – Rear – RH 798.00
U11753-002 1 Spar – Front – LH 971.25
U11753-003 1 Spar – Front – RH 971.25
