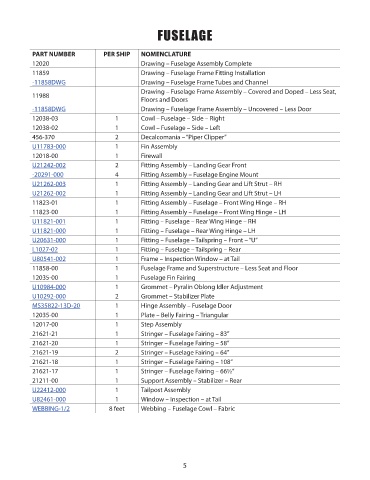

Page 8 - Piper PA-16 Clipper Parts Catalog
P. 8
FUSELAGE
PART NUMBER PER SHIP NOMENCLATURE PRICE
12020 Drawing – Fuselage Assembly Complete NM!
11859 Drawing – Fuselage Frame Fitting Installation NM!
-11858DWG Drawing – Fuselage Frame Tubes and Channel 72.72
Drawing – Fuselage Frame Assembly – Covered and Doped – Less Seat,
11988 NM!
Floors and Doors
-11858DWG Drawing – Fuselage Frame Assembly – Uncovered – Less Door 72.72
12038-03 1 Cowl – Fuselage – Side – Right NM!
12038-02 1 Cowl – Fuselage – Side – Left NM!
456-370 2 Decalcomania – “Piper Clipper” NM!
U11783-000 1 Fin Assembly 725.09
12018-00 1 Firewall NM!
U21242-002 2 Fitting Assembly – Landing Gear Front 244.83
-20291-000 4 Fitting Assembly – Fuselage Engine Mount 206.58
U21262-003 1 Fitting Assembly – Landing Gear and Lift Strut – RH 294.05
U21262-002 1 Fitting Assembly – Landing Gear and Lift Strut – LH 282.73
11823-01 1 Fitting Assembly – Fuselage – Front Wing Hinge – RH NM!
11823-00 1 Fitting Assembly – Fuselage – Front Wing Hinge – LH NM!
U11821-001 1 Fitting – Fuselage – Rear Wing Hinge – RH 50.90
U11821-000 1 Fitting – Fuselage – Rear Wing Hinge – LH 50.90
U20631-000 1 Fitting – Fuselage – Tailspring – Front – “U” 48.16
L1027-02 1 Fitting – Fuselage – Tailspring – Rear 49.14
U80541-002 1 Frame – Inspection Window – at Tail 16.33
11858-00 1 Fuselage Frame and Superstructure – Less Seat and Floor NM!
12035-00 1 Fuselage Fin Fairing NM!
U10984-000 1 Grommet – Pyralin Oblong Idler Adjustment 20.62
U10292-000 2 Grommet – Stabilizer Plate 14.33
MS35822-13D-20 1 Hinge Assembly – Fuselage Door 49.60
12035-00 1 Plate – Belly Fairing – Triangular NM!
12017-00 1 Step Assembly NM!
21621-21 1 Stringer – Fuselage Fairing – 83” NM!
21621-20 1 Stringer – Fuselage Fairing – 58” NM!
21621-19 2 Stringer – Fuselage Fairing – 64” NM!
21621-18 1 Stringer – Fuselage Fairing – 108” NM!
21621-17 1 Stringer – Fuselage Fairing – 66½” NM!
21211-00 1 Support Assembly – Stabilizer – Rear NM!
U22412-000 1 Tailpost Assembly 194.44
U82461-000 1 Window – Inspection – at Tail 19.87
WEBBING-1/2 8 feet Webbing – Fuselage Cowl – Fabric 0.80
5
