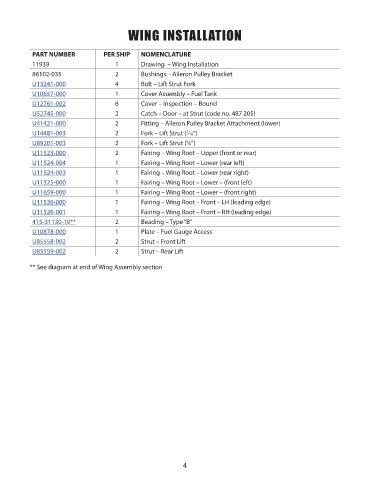

WING INSTALLATION

PART NUMBER PER SHIP NOMENCLATURE PRICE
11939 1 Drawing – Wing Installation NM!
86102-035 2 Bushings – Aileron Pulley Bracket NM!
U13241-000 4 Bolt – Lift Strut Fork 19.20
U10657-000 1 Cover Assembly – Fuel Tank 446.45
U12761-002 6 Cover – Inspection – Round 51.66
U52745-000 2 Catch – Door – at Strut (code no. 487 205) 5.59

U41421-000 2 Fitting – Aileron Pulley Bracket Attachment (lower) 25.75
U14481-003 2 Fork – Lift Strut ( ⁄16”) 130.37
7
U89201-003 2 Fork – Lift Strut ( ⁄8”) 164.19
5
U11523-000 2 Fairing – Wing Root – Upper (front or rear) 88.99
U11524-004 1 Fairing – Wing Root – Lower (rear left) 83.27
U11524-003 1 Fairing – Wing Root – Lower (rear right) 83.27
U11525-000 1 Fairing – Wing Root – Lower – (front left) 79.19
U11659-000 1 Fairing – Wing Root – Lower – (front right) 38.89
U11526-000 1 Fairing – Wing Root – Front – LH (leading edge) 105.15
U11526-001 1 Fairing – Wing Root – Front – RH (leading edge) 105.15
415-31130-10** 2 Beading – Type “B” 52.20
U10878-000 1 Plate – Fuel Gauge Access 21.03
U85558-002 2 Strut – Front Lift 922.73
U85559-002 2 Strut – Rear Lift 776.09

** See diagram at end of Wing Assembly section

4
