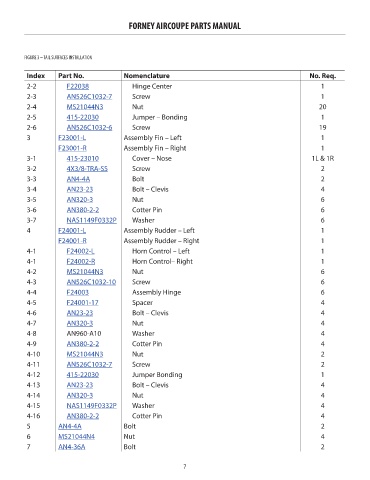

FORNEY AIRCOUPE PARTS MANUAL
FIGURE 3 – TAIL SURFACES INSTALLATION
Index Part No. Nomenclature No. Req. Price
2-2 F22038 Hinge Center 1 66.51
2-3 AN526C1032-7 Screw 1 0.80
2-4 MS21044N3 Nut 20 0.51
2-5 415-22030 Jumper – Bonding 1 2.89
2-6 AN526C1032-6 Screw 19 0.40
3 F23001-L Assembly Fin – Left 1 1126.08
F23001-R Assembly Fin – Right 1 1126.08
3-1 415-23010 Cover – Nose 1L & 1R 179.05
3-2 4X3/8-TRA-SS Screw 2 0.10
3-3 AN4-4A Bolt 2 0.30
3-4 AN23-23 Bolt – Clevis 4 2.60
3-5 AN320-3 Nut 6 1.00
3-6 AN380-2-2 Cotter Pin 6 0.04
3-7 NAS1149F0332P Washer 6 0.04
4 F24001-L Assembly Rudder – Left 1 3607.91
F24001-R Assembly Rudder – Right 1 3607.91
4-1 F24002-L Horn Control – Left 1 240.96
4-1 F24002-R Horn Control – Right 1 240.96
4-2 MS21044N3 Nut 6 0.51
4-3 AN526C1032-10 Screw 6 0.64
4-4 F24003 Assembly Hinge 6 43.26
4-5 F24001-17 Spacer 4 2.27
4-6 AN23-23 Bolt – Clevis 4 2.60
4-7 AN320-3 Nut 4 1.00
4-8 AN960-A10 Washer 4 NM!
4-9 AN380-2-2 Cotter Pin 4 0.04
4-10 MS21044N3 Nut 2 0.51
4-11 AN526C1032-7 Screw 2 0.80
4-12 415-22030 Jumper Bonding 1 2.89
4-13 AN23-23 Bolt – Clevis 4 2.60
4-14 AN320-3 Nut 4 1.00
4-15 NAS1149F0332P Washer 4 0.04
4-16 AN380-2-2 Cotter Pin 4 0.04
5 AN4-4A Bolt 2 0.30
6 MS21044N4 Nut 4 0.30
7 AN4-36A Bolt 2 1.00
