FORNEY AIRCOUPE PARTS MANUAL

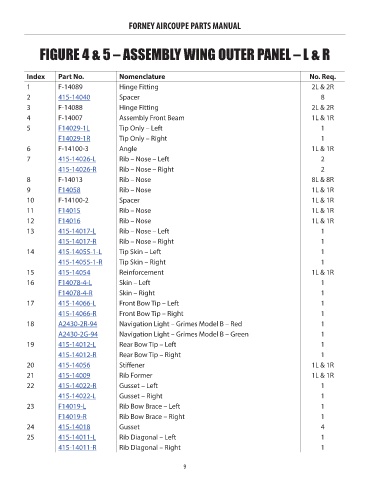

FIGURE 4 & 5 – ASSEMBLY WING OUTER PANEL – L & R

Index Part No. Nomenclature No. Req. Price
1 F-14089 Hinge Fitting 2L & 2R NM!
2 415-14040 Spacer 8 4.65
3 F-14088 Hinge Fitting 2L & 2R NM!
4 F-14007 Assembly Front Beam 1L & 1R NM!

5 F14029-1L Tip Only – Left 1 293.67
F14029-1R Tip Only – Right 1 293.67
6 F-14100-3 Angle 1L & 1R NM!
7 415-14026-L Rib – Nose – Left 2 168.39
415-14026-R Rib – Nose – Right 2 168.39
8 F-14013 Rib – Nose 8L & 8R NM!
9 F14058 Rib – Nose 1L & 1R 120.47
10 F-14100-2 Spacer 1L & 1R NM!
11 F14015 Rib – Nose 1L & 1R 71.14

12 F14016 Rib – Nose 1L & 1R 71.14
13 415-14017-L Rib – Nose – Left 1 169.20
415-14017-R Rib – Nose – Right 1 169.20
14 415-14055-1-L Tip Skin – Left 1 125.03
415-14055-1-R Tip Skin – Right 1 125.03
15 415-14054 Reinforcement 1L & 1R 6.23
16 F14078-4-L Skin – Left 1 996.35

F14078-4-R Skin – Right 1 996.35
17 415-14066-L Front Bow Tip – Left 1 944.76
415-14066-R Front Bow Tip – Right 1 944.76
18 A2430-2R-94 Navigation Light – Grimes Model B – Red 1 397.47
A2430-2G-94 Navigation Light – Grimes Model B – Green 1 397.47
19 415-14012-L Rear Bow Tip – Left 1 984.12
415-14012-R Rear Bow Tip – Right 1 984.12
20 415-14056 Stiffener 1L & 1R 5.67
21 415-14009 Rib Former 1L & 1R 251.27

22 415-14022-R Gusset – Left 1 2.54
415-14022-L Gusset – Right 1 2.54
23 F14019-L Rib Bow Brace – Left 1 106.67
F14019-R Rib Bow Brace – Right 1 106.67
24 415-14018 Gusset 4 2.54
25 415-14011-L Rib Diagonal – Left 1 224.43
415-14011-R Rib Diagonal – Right 1 224.43

9
