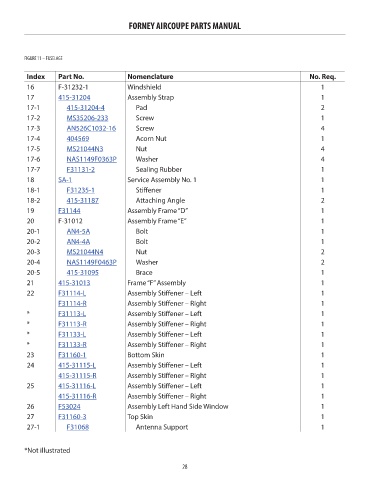

FORNEY AIRCOUPE PARTS MANUAL

FIGURE 11 – FUSELAGE

Index Part No. Nomenclature No. Req. Price
16 F-31232-1 Windshield 1 NM!
17 415-31204 Assembly Strap 1 278.17
17-1 415-31204-4 Pad 2 5.31
17-2 MS35206-233 Screw 1 0.22

17-3 AN526C1032-16 Screw 4 0.66
17-4 404569 Acorn Nut 1 0.09
17-5 MS21044N3 Nut 4 0.51
17-6 NAS1149F0363P Washer 4 0.08
17-7 F31131-2 Sealing Rubber 1 47.55
18 SA-1 Service Assembly No. 1 1 4046.77
18-1 F31235-1 Stiffener 1 54.00
18-2 415-31187 Attaching Angle 2 8.53
19 F31144 Assembly Frame “D” 1 1220.35

20 F-31012 Assembly Frame “E” 1 NM!
20-1 AN4-5A Bolt 1 0.46
20-2 AN4-4A Bolt 1 0.30
20-3 MS21044N4 Nut 2 0.30
20-4 NAS1149F0463P Washer 2 0.06
20-5 415-31095 Brace 1 72.27
21 415-31013 Frame “F” Assembly 1 594.78

22 F31114-L Assembly Stiffener – Left 1 45.47
F31114-R Assembly Stiffener – Right 1 45.47
* F31113-L Assembly Stiffener – Left 1 35.61
* F31113-R Assembly Stiffener – Right 1 35.61
* F31133-L Assembly Stiffener – Left 1 55.94
* F31133-R Assembly Stiffener – Right 1 55.94
23 F31160-1 Bottom Skin 1 93.92
24 415-31115-L Assembly Stiffener – Left 1 36.69
415-31115-R Assembly Stiffener – Right 1 36.69

25 415-31116-L Assembly Stiffener – Left 1 36.69
415-31116-R Assembly Stiffener – Right 1 36.69
26 F53024 Assembly Left Hand Side Window 1 767.93
27 F31160-3 Top Skin 1 1645.60
27-1 F31068 Antenna Support 1 9.72

*Not illustrated

28
