FORNEY AIRCOUPE PARTS MANUAL

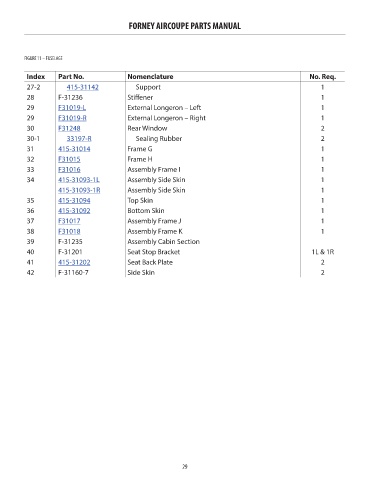

FIGURE 11 – FUSELAGE
Index Part No. Nomenclature No. Req. Price
27-2 415-31142 Support 1 105.74
28 F-31236 Stiffener 1 NM!
29 F31019-L External Longeron – Left 1 390.52
29 F31019-R External Longeron – Right 1 390.52
30 F31248 Rear Window 2 98.01
30-1 33197-R Sealing Rubber 2 39.95
31 415-31014 Frame G 1 144.01
32 F31015 Frame H 1 113.55
33 F31016 Assembly Frame I 1 124.96
34 415-31093-1L Assembly Side Skin 1 675.66
415-31093-1R Assembly Side Skin 1 675.66
35 415-31094 Top Skin 1 647.58
36 415-31092 Bottom Skin 1 624.06
37 F31017 Assembly Frame J 1 139.45
38 F31018 Assembly Frame K 1 186.83
39 F-31235 Assembly Cabin Section NM!
40 F-31201 Seat Stop Bracket 1L & 1R NM!
41 415-31202 Seat Back Plate 2 34.73
42 F-31160-7 Side Skin 2 NM!
