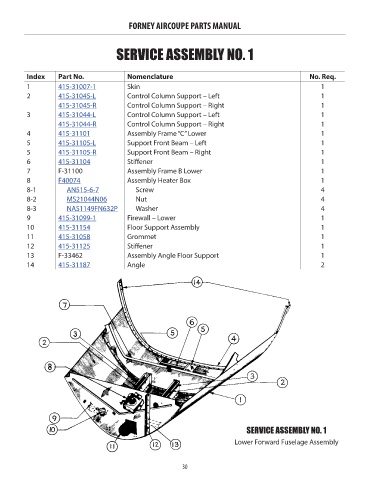

FORNEY AIRCOUPE PARTS MANUAL
SERVICE ASSEMBLY NO. 1
Index Part No. Nomenclature No. Req. Price
1 415-31007-1 Skin 1 796.05
2 415-31045-L Control Column Support – Left 1 108.94
415-31045-R Control Column Support – Right 1 108.94
3 415-31044-L Control Column Support – Left 1 113.79
415-31044-R Control Column Support – Right 1 96.77
4 415-31101 Assembly Frame “C” Lower 1 632.47
5 415-31105-L Support Front Beam – Left 1 42.11
5 415-31105-R Support Front Beam – Right 1 42.11
6 415-31104 Stiffener 1 11.33
7 F-31100 Assembly Frame B Lower 1 NM!
8 F40074 Assembly Heater Box 1 342.54
8-1 AN515-6-7 Screw 4 0.49
8-2 MS21044N06 Nut 4 0.44
8-3 NAS1149FN632P Washer 4 0.06
9 415-31099-1 Firewall – Lower 1 225.88
10 415-31154 Floor Support Assembly 1 65.91
11 415-31058 Grommet 1 58.65
12 415-31125 Stiffener 1 22.85
13 F-33462 Assembly Angle Floor Support 1 NM!
14 415-31187 Angle 2 8.53
SERVICE ASSEMBLY NO. 1
Lower Forward Fuselage Assembly
