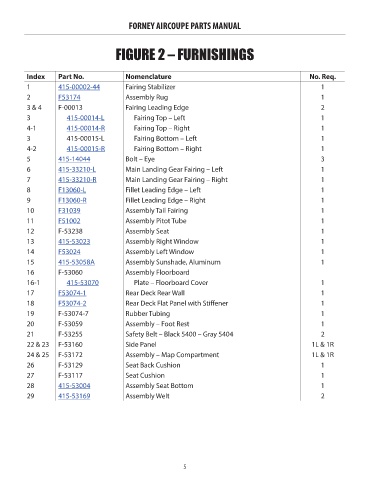

FORNEY AIRCOUPE PARTS MANUAL

FIGURE 2 – FURNISHINGS

Index Part No. Nomenclature No. Req. Price
1 415-00002-44 Fairing Stabilizer 1 14.44
2 F53174 Assembly Rug 1 184.8
3 & 4 F-00013 Fairing Leading Edge 2 NM!
3 415-00014-L Fairing Top – Left 1 60.18

4-1 415-00014-R Fairing Top – Right 1 60.18
3 415-00015-L Fairing Bottom – Left 1 NM!
4-2 415-00015-R Fairing Bottom – Right 1 14.34
5 415-14044 Bolt – Eye 3 12.56
6 415-33210-L Main Landing Gear Fairing – Left 1 181.94
7 415-33210-R Main Landing Gear Fairing – Right 1 181.94
8 F13060-L Fillet Leading Edge – Left 1 1206.41
9 F13060-R Fillet Leading Edge – Right 1 1206.41
10 F31039 Assembly Tail Fairing 1 1365.6

11 F51002 Assembly Pitot Tube 1 422.56
12 F-53238 Assembly Seat 1 NM!
13 415-53023 Assembly Right Window 1 603.33
14 F53024 Assembly Left Window 1 696.54
15 415-53058A Assembly Sunshade, Aluminum 1 707.73
16 F-53060 Assembly Floorboard NM!
16-1 415-53070 Plate – Floorboard Cover 1 110.43

17 F53074-1 Rear Deck Rear Wall 1 113.68
18 F53074-2 Rear Deck Flat Panel with Stiffener 1 344.98
19 F-53074-7 Rubber Tubing 1 NM!
20 F-53059 Assembly – Foot Rest 1 NM!
21 F-53255 Safety Belt – Black 5400 – Gray 5404 2 NM!
22 & 23 F-53160 Side Panel 1L & 1R NM!
24 & 25 F-53172 Assembly – Map Compartment 1L & 1R NM!
26 F-53129 Seat Back Cushion 1 NM!
27 F-53117 Seat Cushion 1 NM!

28 415-53004 Assembly Seat Bottom 1 833.86
29 415-53169 Assembly Welt 2 61.85
