FORNEY AIRCOUPE PARTS MANUAL

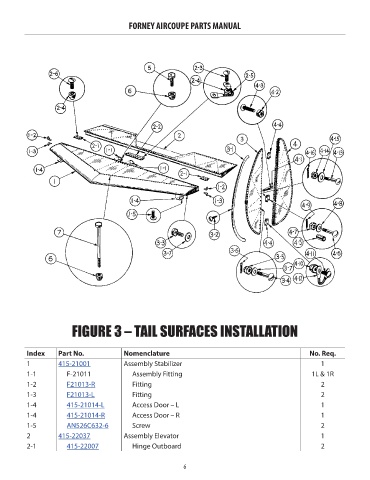

FIGURE 3 – TAIL SURFACES INSTALLATION
Index Part No. Nomenclature No. Req. Price
1 415-21001 Assembly Stabilizer 1 13437.89
1-1 F-21011 Assembly Fitting 1L & 1R NM!
1-2 F21013-R Fitting 2 80.93
1-3 F21013-L Fitting 2 80.93
1-4 415-21014-L Access Door – L 1 17.64
1-4 415-21014-R Access Door – R 1 17.64
1-5 AN526C632-6 Screw 2 0.38
2 415-22037 Assembly Elevator 1 3696.39
2-1 415-22007 Hinge Outboard 2 69.35
