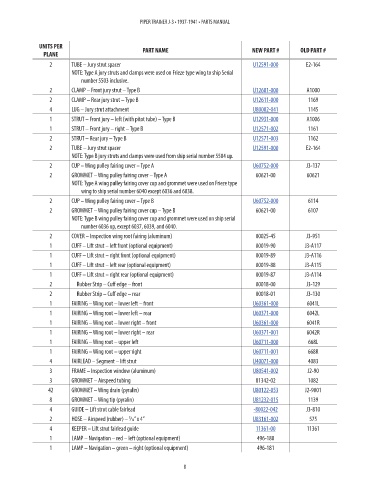

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 TUBE – Jury strut spacer U12591-000 E2-164 100.2
NOTE: Type A jury struts and clamps were used on Frieze type wing to ship Serial
number 5503 inclusive.
2 CLAMP – Front jury strut – Type B U12601-000 A1000 83.4
2 CLAMP – Rear jury strut – Type B U12611-000 1169 45.01
4 LUG – Jury strut attachment U80002-041 1145 22.3
1 STRUT – Front jury – left (with pitot tube) – Type B U12931-000 A1006 228.43
1 STRUT – Front jury – right – Type B U12571-002 1161 129.54
2 STRUT – Rear jury – Type B U12571-003 1162 129.54
2 TUBE – Jury strut spacer U12591-000 E2-164 100.2
NOTE: Type B jury struts and clamps were used from ship serial number 5504 up.
2 CUP – Wing pulley fairing cover – Type A U60752-000 J3-137 65.77
2 GROMMET – Wing pulley fairing cover – Type A 60621-00 60621 NM!
NOTE: Type A wing pulley fairing cover cup and grommet were used on Frieze type
wing to ship serial number 6040 except 6036 and 6038.
2 CUP – Wing pulley fairing cover – Type B U60752-000 6114 65.77
2 GROMMET – Wing pulley fairing cover cup – Type B 60621-00 6107 NM!
NOTE: Type B wing pulley fairing cover cup and grommet were used on ship serial
number 6036 up, except 6037, 6039, and 6040.
2 COVER – Inspection wing root fairing (aluminum) 00025-45 J3-951 NM!
1 CUFF – Lift strut – left front (optional equipment) 00019-90 J3-A117 NM!
1 CUFF – Lift strut – right front (optional equipment) 00019-89 J3-A116 NM!
1 CUFF – Lift strut – left rear (optional equipment) 00019-88 J3-A115 NM!
1 CUFF – Lift strut – right rear (optional equipment) 00019-87 J3-A114 NM!
2 Rubber Strip – Cuff edge – front 00018-00 J3-129 NM!
2 Rubber Strip – Cuff edge – rear 00018-01 J3-130 NM!
1 FAIRING – Wing root – lower left – front U60361-000 6041L 26.7
1 FAIRING – Wing root – lower left – rear U60371-000 6042L 65.17
1 FAIRING – Wing root – lower right – front U60361-000 6041R 26.7
1 FAIRING – Wing root – lower right – rear U60371-001 6042R 65.17
1 FAIRING – Wing root – upper left U60711-000 668L 92.35
1 FAIRING – Wing root – upper right U60711-001 668R 110.43
4 FAIRLEAD – Segment – lift strut U40071-000 4083 1.32
3 FRAME – Inspection window (aluminum) U80541-002 J2-90 14.81
3 GROMMET – Airspeed tubing 81342-02 1082 NM!
42 GROMMET – Wing drain (pyralin) U80122-053 J2-9001 4.09
8 GROMMET – Wing tip (pyralin) U81232-015 1139 2.2
4 GUIDE – Lift strut cable fairlead -80022-042 J3-810 11.05
2 HOSE – Airspeed (rubber) – ⁄16” x 4” U83161-002 575 5.91
3
4 KEEPER – Lift strut fairlead guide 11361-00 11361 NM!
1 LAMP – Navigation – red – left (optional equipment) 496-180 NM!
1 LAMP – Navigation – green – right (optional equipment) 496-181 NM!

8
