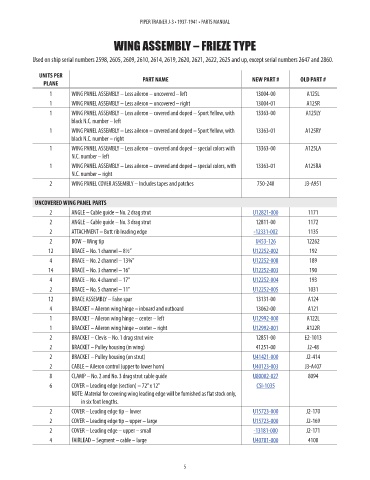

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

WING ASSEMBLY – FRIEZE TYPE

Used on ship serial numbers 2598, 2605, 2609, 2610, 2614, 2619, 2620, 2621, 2622, 2625 and up, except serial numbers 2647 and 2860.

UNITS PER
PLANE PART NAME NEW PART # OLD PART # PRICE
1 WING PANEL ASSEMBLY – Less aileron – uncovered – left 13004-00 A125L NM!
1 WING PANEL ASSEMBLY – Less aileron – uncovered – right 13004-01 A125R NM!
1 WING PANEL ASSEMBLY – Less aileron – covered and doped – Sport Yellow, with 13363-00 A125LY NM!
black N.C. number – left
1 WING PANEL ASSEMBLY – Less aileron – covered and doped – Sport Yellow, with 13363-01 A125RY NM!
black N.C. number – right
1 WING PANEL ASSEMBLY – Less aileron – covered and doped – special colors with 13363-00 A125LA NM!
N.C. number – left
1 WING PANEL ASSEMBLY – Less aileron – covered and doped – special colors, with 13363-01 A125RA NM!
N.C. number – right
2 WING PANEL COVER ASSEMBLY – Includes tapes and patches 750-240 J3-A951 NM!

UNCOVERED WING PANEL PARTS
2 ANGLE – Cable guide – No. 2 drag strut U12821-000 1171 22.59
2 ANGLE – Cable guide – No. 3 drag strut 12811-00 1172 NM!
2 ATTACHMENT – Butt rib leading edge -12331-002 1135 14.24
2 BOW – Wing tip U453-126 12262 50.86
12 BRACE – No. 1 channel – 8½” U12252-002 192 14.33
4 BRACE – No. 2 channel – 13¾” U12252-008 189 16.85
14 BRACE – No. 3 channel – 16” U12252-003 190 18.60
4 BRACE – No. 4 channel – 17” U12252-004 193 14.33
2 BRACE – No. 5 channel – 11” U12252-005 1031 14.33
12 BRACE ASSEMBLY – False spar 13131-00 A124 NM!
4 BRACKET – Aileron wing hinge – inboard and outboard 13062-00 A121 NM!
1 BRACKET – Aileron wing hinge – center – left U12992-000 A122L 761.67
1 BRACKET – Aileron wing hinge – center – right U12992-001 A122R 761.67
2 BRACKET – Clevis – No. 1 drag strut wire 12851-00 E2-1013 NM!
2 BRACKET – Pulley housing (in wing) 41251-00 J2-48 NM!
2 BRACKET – Pulley housing (on strut) U41421-000 J2-414 25.75
2 CABLE – Aileron control (upper to lower horn) U40123-003 J3-A407 158.09
8 CLAMP – No. 2 and No. 3 drag strut cable guide U80002-027 8094 25.78
6 COVER – Leading edge (section) – 72” x 12” CSI-1035 73.07
NOTE: Material for covering wing leading edge will be furnished as flat stock only,
in six foot lengths.
2 COVER – Leading edge tip – lower U15723-000 J2-170 315.28
2 COVER – Leading edge tip – upper – large U15723-000 J2-169 315.28
2 COVER – Leading edge – upper – small -13181-000 J2-171 0.00
4 FAIRLEAD – Segment – cable – large U40701-000 4108 1.44
