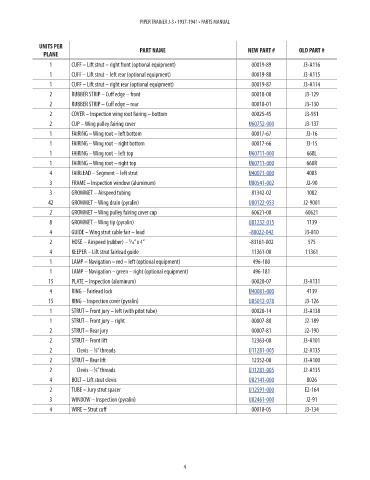

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 CUFF – Lift strut – right front (optional equipment) 00019-89 J3-A116 NM!
1 CUFF – Lift strut – left rear (optional equipment) 00019-88 J3-A115 NM!
1 CUFF – Lift strut – right rear (optional equipment) 00019-87 J3-A114 NM!

2 RUBBER STRIP – Cuff edge – front 00018-00 J3-129 NM!
2 RUBBER STRIP – Cuff edge – rear 00018-01 J3-130 NM!
2 COVER – Inspection wing root fairing – bottom 00025-45 J3-951 NM!
2 CUP – Wing pulley fairing cover U60752-000 J3-137 65.77
1 FAIRING – Wing root – left bottom 00017-67 J3-16 NM!
1 FAIRING – Wing root – right bottom 00017-66 J3-15 NM!
1 FAIRING – Wing root – left top U60711-000 668L 92.35
1 FAIRING – Wing root – right top U60711-000 668R 92.35
4 FAIRLEAD – Segment – left strut U40071-000 4083 1.32
3 FRAME – Inspection window (aluminum) U80541-002 J2-90 14.81
3 GROMMET – Airspeed tubing 81342-02 1082 NM!
42 GROMMET – Wing drain (pyralin) U80122-053 J2-9001 4.09
2 GROMMET – Wing pulley fairing cover cup 60621-00 60621 NM!
8 GROMMET – Wing tip (pyralin) U81232-015 1139 2.2
4 GUIDE – Wing strut cable fair – lead -80022-042 J3-810 11.05
2 HOSE – Airspeed (rubber) – ⁄16” x 4” -83161-002 575 NM!
3
4 KEEPER – Lift strut fairlead guide 11361-00 11361 NM!
1 LAMP – Navigation – red – left (optional equipment) 496-180 NM!
1 LAMP – Navigation – green – right (optional equipment) 496-181 NM!
15 PLATE – Inspection (aluminum) 00020-07 J3-A131 NM!
4 RING – Fairlead lock U40081-000 4139 0.49
15 RING – Inspection cover (pyralin) U85012-078 J3-126 8.99
1 STRUT – Front jury – left (with pitot tube) 00020-14 J3-A138 NM!
1 STRUT – Front jury – right 00007-80 J2-189 NM!
2 STRUT – Rear jury 00007-81 J2-190 NM!
2 STRUT – Front lift 12363-00 J3-A101 NM!
2 Clevis – ⁄8” threads U11281-005 J2-A135 294.58
3
2 STRUT – Rear lift 12352-00 J3-A100 NM!

2 Clevis – ⁄8” threads U11281-005 J2-A135 294.58
3
4 BOLT – Lift strut clevis U82141-000 8026 26.4
2 TUBE – Jury strut spacer U12591-000 E2-164 100.2
3 WINDOW – Inspection (pyralin) U82461-000 J2-91 18.02
4 WIRE – Strut cuff 00018-05 J3-134 NM!
