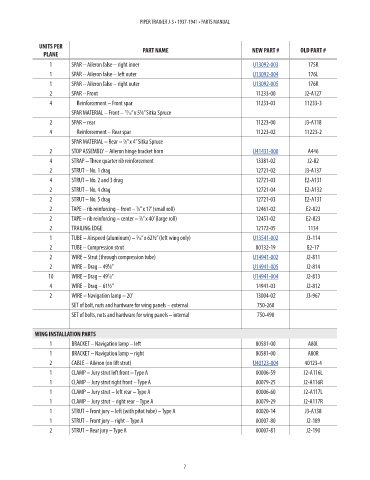

Page 15 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 SPAR – Aileron false – right inner U13092-003 175R 90.22
1 SPAR – Aileron false – left outer U13092-004 176L 94.38
1 SPAR – Aileron false – right outer U13092-005 176R 89.41
2 SPAR – Front 11233-00 J2-A127 NM!
4 Reinforcement – Front spar 11233-03 11233-3 NM!
SPAR MATERIAL – Front – ⁄16” x 5 ⁄8” Sitka Spruce
13
5
2 SPAR – rear 11223-00 J3-A118 NM!
4 Reinforcement – Rear spar 11223-02 11223-2 NM!
SPAR MATERIAL – Rear – ⁄8” x 4” Sitka Spruce
7
2 STOP ASSEMBLY – Aileron hinge bracket horn U41431-000 A446 131.75
4 STRAP – Three quarter rib reinforcement 13381-02 J2-82 NM!
2 STRUT – No. 1 drag 12721-02 J3-A137 NM!
4 STRUT – No. 2 and 3 drag 12721-03 E2-A131 NM!
2 STRUT – No. 4 drag 12721-04 E2-A132 NM!
2 STRUT – No. 5 drag 12721-03 E2-A131 NM!
2 TAPE – rib reinforcing – front – ⁄8” x 17’ (small roll) 12461-02 E2-822 NM!
3
3
2 TAPE – rib reinforcing – center – ⁄8” x 40’ (large roll) 12451-02 E2-823 NM!
2 TRAILING EDGE 12172-05 1134 NM!
3
1 TUBE – Airspeed (aluminum) – ⁄16” x 62½” (left wing only) U13541-002 J3-114 66.08
2 TUBE – Compression strut 80132-19 E2-17 NM!
2 WIRE – Strut (through compression tube) U14941-002 J2-811 53.34
2 WIRE – Drag – 49 ⁄8” U14941-005 J2-814 53.34
1
10 WIRE – Drag – 49 ⁄8” U14941-004 J2-813 39.2
7
4 WIRE – Drag – 61½” 14941-03 J2-812 NM!
2 WIRE – Navigation lamp – 20’ 13004-02 J3-967 NM!
SET of bolt, nuts and hardware for wing panels – external 750-260 NM!
SET of bolts, nuts and hardware for wing panels – internal 750-490 NM!

WING INSTALLATION PARTS
1 BRACKET – Navigation lamp – left 80581-00 A80L NM!
1 BRACKET – Navigation lamp – right 80581-00 A80R NM!
2 CABLE – Aileron (on lift strut) U40123-004 40123-4 187.71
1 CLAMP – Jury strut left front – Type A 00006-59 J2-A116L NM!
1 CLAMP – Jury strut right front – Type A 00079-25 J2-A116R NM!
1 CLAMP – Jury strut – left rear – Type A 00006-60 J2-A117L NM!
1 CLAMP – Jury strut – right rear – Type A 00079-29 J2-A117R NM!
1 STRUT – Front jury – left (with pitot tube) – Type A 00020-14 J3-A138 NM!
1 STRUT – Front jury – right – Type A 00007-80 J2-189 NM!
2 STRUT – Rear jury – Type A 00007-81 J2-190 NM!

7
