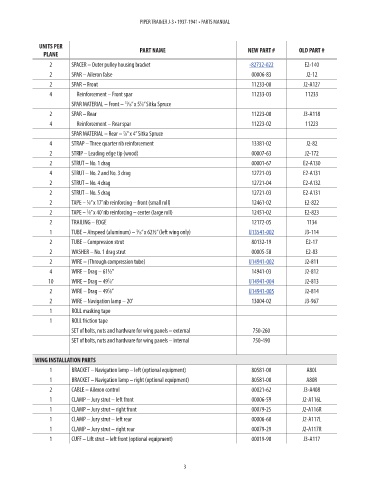

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 SPACER – Outer pulley housing bracket -82732-022 E2-140 19.87
2 SPAR – Aileron false 00006-83 J2-12 NM!
2 SPAR – Front 11233-00 J2-A127 NM!

4 Reinforcement – Front spar 11233-03 11233 NM!
SPAR MATERIAL – Front – ⁄16” x 5 ⁄8” Sitka Spruce x
5
13
2 SPAR – Rear 11223-00 J3-A118 NM!
4 Reinforcement – Rear spar 11223-02 11223 NM!
SPAR MATERIAL – Rear – ⁄8” x 4” Sitka Spruce x
7
4 STRAP – Three quarter rib reinforcement 13381-02 J2-82 NM!
2 STRIP – Leading edge tip (wood) 00007-63 J2-172 NM!
2 STRUT – No. 1 drag 00001-67 E2-A130 NM!
4 STRUT – No. 2 and No. 3 drag 12721-03 E2-A131 NM!
2 STRUT – No. 4 drag 12721-04 E2-A132 NM!
2 STRUT – No. 5 drag 12721-03 E2-A131 NM!
2 TAPE – ⁄8” x 17’ rib reinforcing – front (small roll) 12461-02 E2-822 NM!
3
2 TAPE – ⁄8” x 40’ rib reinforcing – center (large roll) 12451-02 E2-823 NM!
3
2 TRAILING – EDGE 12172-05 1134 NM!
1 TUBE – Airspeed (aluminum) – ⁄16” x 62½” (left wing only) U13541-002 J3-114 66.08
3
2 TUBE – Compression strut 80132-19 E2-17 NM!
2 WASHER – No. 1 drag strut 00005-58 E2-83 NM!
2 WIRE – (Through compression tube) U14941-002 J2-811 53.34
4 WIRE – Drag – 61½” 14941-03 J2-812 NM!
10 WIRE – Drag – 49 ⁄8” U14941-004 J2-813 39.2
7
7
2 WIRE – Drag – 49 ⁄8” U14941-005 J2-814 53.34
2 WIRE – Navigation lamp – 20’ 13004-02 J3-967 NM!
1 ROLL masking tape x
1 ROLL friction tape x
SET of bolts, nuts and hardware for wing panels – external 750-260 NM!
SET of bolts, nuts and hardware for wing panels – internal 750-490 NM!

WING INSTALLATION PARTS

1 BRACKET – Navigation lamp – left (optional equipment) 80581-00 A80L NM!
1 BRACKET – Navigation lamp – right (optional equipment) 80581-00 A80R NM!
2 CABLE – Aileron control 00021-62 J3-A408 NM!
1 CLAMP – Jury strut – left front 00006-59 J2-A116L NM!
1 CLAMP – Jury strut – right front 00079-25 J2-A116R NM!
1 CLAMP – Jury strut – left rear 00006-60 J2-A117L NM!
1 CLAMP – Jury strut – right rear 00079-29 J2-A117R NM!
1 CUFF – Lift strut – left front (optional equipment) 00019-90 J3-A117 NM!

3
