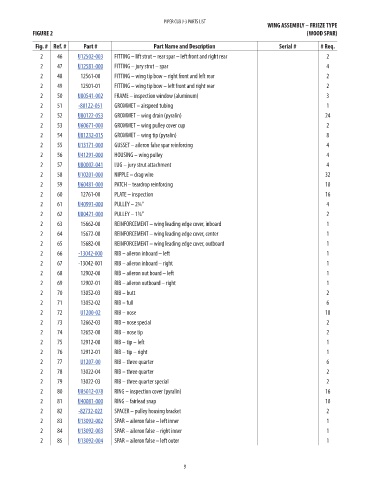

PIPER CUB J-3 PARTS LIST
WING ASSEMBLY – FRIEZE TYPE
FIGURE 2 (WOOD SPAR)

Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
2 46 U12502-003 FITTING – lift strut – rear spar – left front and right rear 2 123.38
2 47 U12581-000 FITTING – jury strut – spar 4 21.22
2 48 12561-00 FITTING – wing tip bow – right front and left rear 2 NM!
2 49 12501-01 FITTING – wing tip bow – left front and right rear 2 NM!
2 50 U80541-002 FRAME – inspection window (aluminum) 3 14.81
2 51 -80122-051 GROMMET – airspeed tubing 1 4.37
2 52 U80122-053 GROMMET – wing drain (pyralin) 24 4.09
2 53 U60671-000 GROMMET – wing pulley cover cup 2 11.62
2 54 U81232-015 GROMMET – wing tip (pyralin) 8 2.2
2 55 U13171-000 GUSSET – aileron false spar reinforcing 4 31.16
2 56 U41291-000 HOUSING – wing pulley 4 55.91
2 57 U80002-041 LUG – jury strut attachment 4 22.3
2 58 U10201-000 NIPPLE – drag wire 32 11.74
2 59 U60481-000 PATCH – teardrop reinforcing 10 7.34
2 60 12761-00 PLATE – inspection 16 NM!
2 61 U40991-000 PULLEY – 2¾” 4 18.31
2 62 U80421-000 PULLEY – 1¾” 2 12.37
2 63 15662-00 REINFORCEMENT – wing leading edge cover, inboard 1 NM!
2 64 15672-00 REINFORCEMENT – wing leading edge cover, center 1 NM!
2 65 15682-00 REINFORCEMENT – wing leading edge cover, outboard 1 NM!
2 66 -13042-000 RIB – aileron inboard – left 1 205.98

2 67 -13042-001 RIB – aileron inboard – right 1 NM!
2 68 12902-00 RIB – aileron out board – left 1 NM!
2 69 12902-01 RIB – aileron outboard – right 1 NM!
2 70 13052-03 RIB – butt 2 NM!
2 71 13052-02 RIB – full 6 NM!
2 72 U1200-02 RIB – nose 18 29.72
2 73 12662-03 RIB – nose special 2 NM!
2 74 12652-00 RIB – nose tip 2 NM!
2 75 12912-00 RIB – tip – left 1 NM!
2 76 12912-01 RIB – tip – right 1 NM!
2 77 U1207-00 RIB – three quarter 6 150.64
2 78 13022-04 RIB – three quarter 2 NM!
2 79 13022-03 RIB – three quarter special 2 NM!
2 80 U85012-078 RING – inspection cover (pyralin) 16 8.99
2 81 U40081-000 RING – fairlead snap 10 0.49
2 82 -82732-022 SPACER – pulley housing bracket 2 19.87
2 83 U13092-002 SPAR – aileron false – left inner 1 94.31
2 84 U13092-003 SPAR – aileron false – right inner 1 90.22
2 85 U13092-004 SPAR – aileron false – left outer 1 94.38
