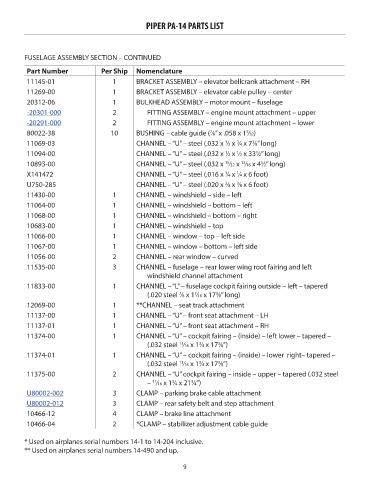

PIPER PA-14 PARTS LIST

FUSELAGE ASSEMBLY SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
11145-01 1 BRACKET ASSEMBLY – elevator bellcrank attachment – RH NM!
11269-00 1 BRACKET ASSEMBLY – elevator cable pulley – center NM!
20312-06 1 BULKHEAD ASSEMBLY – motor mount – fuselage NM!
-20301-000 2 FITTING ASSEMBLY – engine mount attachment – upper 173.66
-20291-000 2 FITTING ASSEMBLY – engine mount attachment – lower 187.37
80022-38 10 BUSHING – cable guide ( ⁄8” x .058 x 1 ⁄32) NM!
5
7
11069-03 CHANNEL – “U” – steel (.032 x ⁄2 x ⁄4 x 7 ⁄8” long) NM!
1
3
3
11094-00 CHANNEL – “U” – steel (.032 x ⁄2 x ⁄2 x 33 ⁄2” long) NM!
1
1
1
10893-00 CHANNEL – “U” – steel (.032 x ⁄32 x ⁄16 x 4 ⁄2” long) 75.72
1
13
15
X141472 CHANNEL – “U” – steel (.016 x ⁄4 x ⁄4 x 6 foot) 8.26
1
1
U750-285 CHANNEL – “U” – steel (.020 x ⁄8 x ⁄8 x 6 foot) 11.67
3
3
11430-00 1 CHANNEL – windshield – side – left NM!
11064-00 1 CHANNEL – windshield – bottom – left NM!
11068-00 1 CHANNEL – windshield – bottom – right NM!
10683-00 1 CHANNEL – windshield – top NM!
11066-00 1 CHANNEL – window – top – left side NM!
11067-00 1 CHANNEL – window – bottom – left side NM!
11056-00 2 CHANNEL – rear window – curved NM!
11535-00 3 CHANNEL – fuselage – rear lower wing root fairing and left NM!
windshield channel attachment
11833-00 1 CHANNEL – “L” – fuselage cockpit fairing outside – left – tapered NM!
(.020 steel ⁄8 x 1 ⁄16 x 17 ⁄8” long)
7
3
7
12069-00 1 **CHANNEL – seat track attachment NM!
11137-00 1 CHANNEL – “U” – front seat attachment – LH NM!
11137-01 1 CHANNEL – “U” – front seat attachment – RH NM!
11374-00 1 CHANNEL – “U” – cockpit fairing – (inside) – left lower – tapered – NM!
(.032 steel ⁄16 x 1 ⁄4 x 17 ⁄8”)
3
11
3
11374-01 1 CHANNEL – “U” – cockpit fairing – (inside) – lower right– tapered – NM!
3
(.032 steel ⁄16 x 1 ⁄4 x 17 ⁄8”)
11
3
11375-00 2 CHANNEL – “U” cockpit fairing – inside – upper – tapered (.032 steel NM!
– ⁄16 x 1 ⁄4 x 21 ⁄4”)
3
3
11
U80002-002 3 CLAMP – parking brake cable attachment 34.32
U80002-012 3 CLAMP – rear safety belt and step attachment 22.67
10466-12 4 CLAMP – brake line attachment NM!
10466-04 2 *CLAMP – stabilizer adjustment cable guide NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
