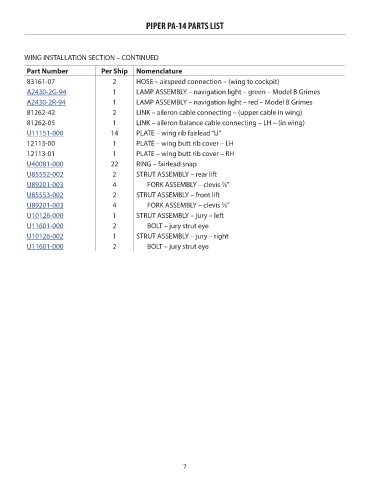

PIPER PA-14 PARTS LIST

WING INSTALLATION SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
83161-07 2 HOSE – airspeed connection – (wing to cockpit) NM!
A2430-2G-94 1 LAMP ASSEMBLY – navigation light – green – Model B Grimes 295.49
A2430-2R-94 1 LAMP ASSEMBLY – navigation light – red – Model B Grimes 295.48
81262-42 2 LINK – aileron cable connecting – (upper cable in wing) NM!
81262-05 1 LINK – aileron balance cable connecting – LH – (in wing) NM!
U11151-000 14 PLATE – wing rib fairlead “U” 8.96

12113-00 1 PLATE – wing butt rib cover – LH NM!
12113-01 1 PLATE – wing butt rib cover – RH NM!
U40081-000 22 RING – fairlead snap 0.49
U85552-002 2 STRUT ASSEMBLY – rear lift 715.47
U89201-003 4 FORK ASSEMBLY – clevis ⁄8” 148.92
5
U85553-002 2 STRUT ASSEMBLY – front lift 715.47
U89201-003 4 FORK ASSEMBLY – clevis ⁄8” 148.92
5
U10126-000 1 STRUT ASSEMBLY – jury – left 679.39
U11601-000 2 BOLT – jury strut eye 56.63
U10126-002 1 STRUT ASSEMBLY – jury – right 408.6
U11601-000 2 BOLT – jury strut eye 56.63

7
