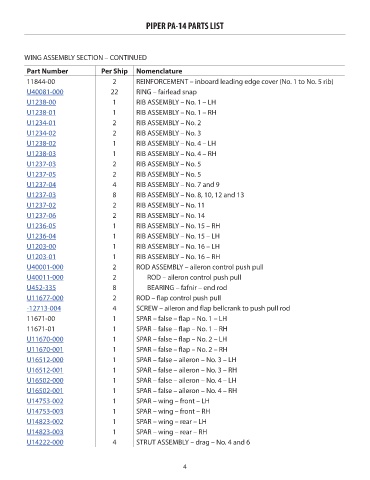

PIPER PA-14 PARTS LIST

WING ASSEMBLY SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
11844-00 2 REINFORCEMENT – inboard leading edge cover (No. 1 to No. 5 rib) NM!
U40081-000 22 RING – fairlead snap 0.54
U1238-00 1 RIB ASSEMBLY – No. 1 – LH 191.21
U1238-01 1 RIB ASSEMBLY – No. 1 – RH 191.21
U1234-01 2 RIB ASSEMBLY – No. 2 257.22
U1234-02 2 RIB ASSEMBLY – No. 3 270.15

U1238-02 1 RIB ASSEMBLY – No. 4 – LH 115.07
U1238-03 1 RIB ASSEMBLY – No. 4 – RH 170.88
U1237-03 2 RIB ASSEMBLY – No. 5 145.75
U1237-05 2 RIB ASSEMBLY – No. 5 213.90
U1237-04 4 RIB ASSEMBLY – No. 7 and 9 204.34
U1237-03 8 RIB ASSEMBLY – No. 8, 10, 12 and 13 145.75
U1237-02 2 RIB ASSEMBLY – No. 11 204.34

U1237-06 2 RIB ASSEMBLY – No. 14 156.91
U1236-05 1 RIB ASSEMBLY – No. 15 – RH 158.96
U1236-04 1 RIB ASSEMBLY – No. 15 – LH 217.29
U1203-00 1 RIB ASSEMBLY – No. 16 – LH 144.72
U1203-01 1 RIB ASSEMBLY – No. 16 – RH 126.23
U40001-000 2 ROD ASSEMBLY – aileron control push pull 208.86
U40011-000 2 ROD – aileron control push pull 63.08
U452-335 8 BEARING – fafnir – end rod 51.72
U11677-000 2 ROD – flap control push pull 71.41

-12713-004 4 SCREW – aileron and flap bellcrank to push pull rod 2.92
11671-00 1 SPAR – false – flap – No. 1 – LH NM!
11671-01 1 SPAR – false – flap – No. 1 – RH NM!
U11670-000 1 SPAR – false – flap – No. 2 – LH 53.90
U11670-001 1 SPAR – false – flap – No. 2 – RH 61.70
U16512-000 1 SPAR – false – aileron – No. 3 – LH 146.91
U16512-001 1 SPAR – false – aileron – No. 3 – RH 146.91

U16502-000 1 SPAR – false – aileron – No. 4 – LH 101.02
U16502-001 1 SPAR – false – aileron – No. 4 – RH 101.02
U14753-002 1 SPAR – wing – front – LH 1000.65
U14753-003 1 SPAR – wing – front – RH 1000.65
U14823-002 1 SPAR – wing – rear – LH 819.00
U14823-003 1 SPAR – wing – rear – RH 819.00
U14222-000 4 STRUT ASSEMBLY – drag – No. 4 and 6 192.72
