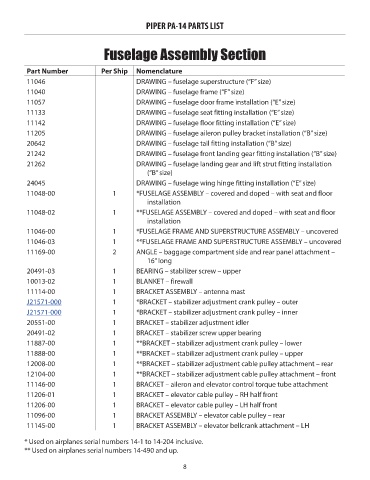

PIPER PA-14 PARTS LIST

Fuselage Assembly Section

Part Number Per Ship Nomenclature Price
11046 DRAWING – fuselage superstructure (“F” size) NM!
11040 DRAWING – fuselage frame (“F” size) NM!
11057 DRAWING – fuselage door frame installation (“E” size) NM!
11133 DRAWING – fuselage seat fitting installation (“E” size) NM!
11142 DRAWING – fuselage floor fitting installation (“E” size) NM!
11205 DRAWING – fuselage aileron pulley bracket installation (“B” size) NM!

20642 DRAWING – fuselage tail fitting installation (“B” size) NM!
21242 DRAWING – fuselage front landing gear fitting installation (“B” size) NM!
21262 DRAWING – fuselage landing gear and lift strut fitting installation NM!
(“B” size)
24045 DRAWING – fuselage wing hinge fitting installation (“E” size) NM!
11048-00 1 *FUSELAGE ASSEMBLY – covered and doped – with seat and floor NM!
installation
11048-02 1 **FUSELAGE ASSEMBLY – covered and doped – with seat and floor NM!
installation
11046-00 1 *FUSELAGE FRAME AND SUPERSTRUCTURE ASSEMBLY – uncovered NM!
11046-03 1 **FUSELAGE FRAME AND SUPERSTRUCTURE ASSEMBLY – uncovered NM!
11169-00 2 ANGLE – baggage compartment side and rear panel attachment – NM!
16” long
20491-03 1 BEARING – stabilizer screw – upper NM!
10013-02 1 BLANKET – firewall NM!
11114-00 1 BRACKET ASSEMBLY – antenna mast NM!
J21571-000 1 *BRACKET – stabilizer adjustment crank pulley – outer 14.52

J21571-000 1 *BRACKET – stabilizer adjustment crank pulley – inner 14.52
20551-00 1 BRACKET – stabilizer adjustment idler NM!
20491-02 1 BRACKET – stabilizer screw upper bearing NM!
11887-00 1 **BRACKET – stabilizer adjustment crank pulley – lower NM!
11888-00 1 **BRACKET – stabilizer adjustment crank pulley – upper NM!
12008-00 1 **BRACKET – stabilizer adjustment cable pulley attachment – rear NM!
12104-00 1 **BRACKET – stabilizer adjustment cable pulley attachment – front NM!
11146-00 1 BRACKET – aileron and elevator control torque tube attachment NM!
11206-01 1 BRACKET – elevator cable pulley – RH half front NM!

11206-00 1 BRACKET – elevator cable pulley – LH half front NM!
11096-00 1 BRACKET ASSEMBLY – elevator cable pulley – rear NM!
11145-00 1 BRACKET ASSEMBLY – elevator bellcrank attachment – LH NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

8
