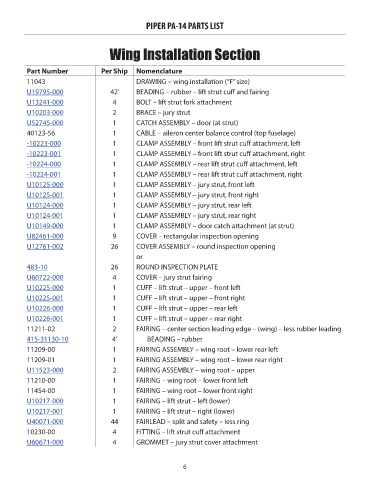

PIPER PA-14 PARTS LIST

Wing Installation Section

Part Number Per Ship Nomenclature Price
11043 DRAWING – wing installation (“F” size) NM!
U19795-000 42’ BEADING – rubber – lift strut cuff and fairing 29.86
U13241-000 4 BOLT – lift strut fork attachment 19.20
U10203-000 2 BRACE – jury strut 145.75
U52745-000 1 CATCH ASSEMBLY – door (at strut) 5.59
40123-56 1 CABLE – aileron center balance control (top fuselage) NM!

-10223-000 1 CLAMP ASSEMBLY – front lift strut cuff attachment, left 97.63
-10223-001 1 CLAMP ASSEMBLY – front lift strut cuff attachment, right 47.69
-10224-000 1 CLAMP ASSEMBLY – rear lift strut cuff attachment, left 152.30
-10224-001 1 CLAMP ASSEMBLY – rear lift strut cuff attachment, right 58.75
U10125-000 1 CLAMP ASSEMBLY – jury strut, front left 148.30
U10125-001 1 CLAMP ASSEMBLY – jury strut, front right 186.09
U10124-000 1 CLAMP ASSEMBLY – jury strut, rear left 217.97

U10124-001 1 CLAMP ASSEMBLY – jury strut, rear right 211.67
U10149-000 1 CLAMP ASSEMBLY – door catch attachment (at strut) 218.22
U82461-000 9 COVER – rectangular inspection opening 19.87
U12761-002 26 COVER ASSEMBLY – round inspection opening 51.66
or
483-10 26 ROUND INSPECTION PLATE 2.58
U60722-000 4 COVER – jury strut fairing 308.51
U10225-000 1 CUFF – lift strut – upper – front left 121.45
U10225-001 1 CUFF – lift strut – upper – front right 121.45

U10226-000 1 CUFF – lift strut – upper – rear left 117.71
U10226-001 1 CUFF – lift strut – upper – rear right 117.71
11211-02 2 FAIRING – center section leading edge – (wing) – less rubber leading NM!
415-31130-10 4’ BEADING – rubber 52.20
11209-00 1 FAIRING ASSEMBLY – wing root – lower rear left NM!
11209-01 1 FAIRING ASSEMBLY – wing root – lower rear right NM!
U11523-000 2 FAIRING ASSEMBLY – wing root – upper 88.99

11210-00 1 FAIRING – wing root – lower front left NM!
11454-00 1 FAIRING – wing root – lower front right NM!
U10217-000 1 FAIRING – lift strut – left (lower) 184.49
U10217-001 1 FAIRING – lift strut – right (lower) 184.49
U40071-000 44 FAIRLEAD – split and safety – less ring 1.45
10230-00 4 FITTING – lift strut cuff attachment NM!
U60671-000 4 GROMMET – jury strut cover attachment 12.81

6
