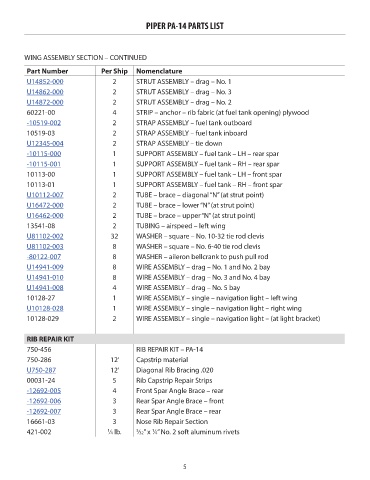

Page 9 - Piper PA-14 Family Cruiser Parts List

PIPER PA-14 PARTS LIST

WING ASSEMBLY SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
U14852-000 2 STRUT ASSEMBLY – drag – No. 1 508.46
U14862-000 2 STRUT ASSEMBLY – drag – No. 3 403.66
U14872-000 2 STRUT ASSEMBLY – drag – No. 2 181.35
60221-00 4 STRIP – anchor – rib fabric (at fuel tank opening) plywood NM!
-10519-002 2 STRAP ASSEMBLY – fuel tank outboard 98.06
10519-03 2 STRAP ASSEMBLY – fuel tank inboard NM!

U12345-004 2 STRAP ASSEMBLY – tie down 70.31
-10115-000 1 SUPPORT ASSEMBLY – fuel tank – LH – rear spar 161.66
-10115-001 1 SUPPORT ASSEMBLY – fuel tank – RH – rear spar 173.96
10113-00 1 SUPPORT ASSEMBLY – fuel tank – LH – front spar NM!
10113-01 1 SUPPORT ASSEMBLY – fuel tank – RH – front spar NM!
U10112-007 2 TUBE – brace – diagonal “N” (at strut point) 102.88
U16472-000 2 TUBE – brace – lower “N” (at strut point) 145.48

U16462-000 2 TUBE – brace – upper “N” (at strut point) 144.97
13541-08 2 TUBING – airspeed – left wing NM!
U81102-002 32 WASHER – square – No. 10-32 tie rod clevis 6.74
U81102-003 8 WASHER – square – No. 6-40 tie rod clevis 5.05
-80122-007 8 WASHER – aileron bellcrank to push pull rod 9.53
U14941-009 8 WIRE ASSEMBLY – drag – No. 1 and No. 2 bay 69.94
U14941-010 8 WIRE ASSEMBLY – drag – No. 3 and No. 4 bay 50.36
U14941-008 4 WIRE ASSEMBLY – drag – No. 5 bay 43.82
10128-27 1 WIRE ASSEMBLY – single – navigation light – left wing NM!

U10128-028 1 WIRE ASSEMBLY – single – navigation light – right wing 39.21
10128-029 2 WIRE ASSEMBLY – single – navigation light – (at light bracket) NM!

RIB REPAIR KIT
750-456 RIB REPAIR KIT – PA-14 NM!
750-286 12’ Capstrip material NM!
U750-287 12’ Diagonal Rib Bracing .020 15.98

00031-24 5 Rib Capstrip Repair Strips NM!
-12692-005 4 Front Spar Angle Brace – rear 11.66
-12692-006 3 Rear Spar Angle Brace – front 12.13
-12692-007 3 Rear Spar Angle Brace – rear 12.79
16661-03 3 Nose Rib Repair Section NM!
421-002 1 ⁄4 lb. 3 ⁄32” x ⁄4” No. 2 soft aluminum rivets NM!
