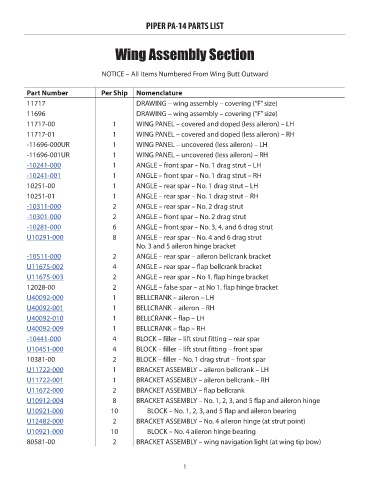

PIPER PA-14 PARTS LIST

Wing Assembly Section

NOTICE – All Items Numbered From Wing Butt Outward

Part Number Per Ship Nomenclature Price
11717 DRAWING – wing assembly – covering (“F” size) NM!
11696 DRAWING – wing assembly – covering (“F” size) NM!

11717-00 1 WING PANEL – covered and doped (less aileron) – LH NM!
11717-01 1 WING PANEL – covered and doped (less aileron) – RH NM!
-11696-000UR 1 WING PANEL – uncovered (less aileron) – LH NM!
-11696-001UR 1 WING PANEL – uncovered (less aileron) – RH NM!
-10241-000 1 ANGLE – front spar – No. 1 drag strut – LH 28.61
-10241-001 1 ANGLE – front spar – No. 1 drag strut – RH 28.61
10251-00 1 ANGLE – rear spar – No. 1 drag strut – LH NM!

10251-01 1 ANGLE – rear spar – No. 1 drag strut – RH NM!
-10311-000 2 ANGLE – rear spar – No. 2 drag strut 33.01
-10301-000 2 ANGLE – front spar – No. 2 drag strut 28.97
-10281-000 6 ANGLE – front spar – No. 3, 4, and 6 drag strut 11.67
U10291-000 8 ANGLE – rear spar – No. 4 and 6 drag strut 26.29
No. 3 and 5 aileron hinge bracket
-10511-000 2 ANGLE – rear spar – aileron bellcrank bracket 13.76
U11675-002 4 ANGLE – rear spar – flap bellcrank bracket 21.33
U11675-003 2 ANGLE – rear spar – No 1. flap hinge bracket 21.33
12028-00 2 ANGLE – false spar – at No 1. flap hinge bracket NM!
U40092-000 1 BELLCRANK – aileron – LH 377.67
U40092-001 1 BELLCRANK – aileron – RH 377.67

U40092-010 1 BELLCRANK – flap – LH 208.85
U40092-009 1 BELLCRANK – flap – RH 197.54
-10441-000 4 BLOCK – filler – lift strut fitting – rear spar 150.51
U10451-000 4 BLOCK – filler – lift strut fitting – front spar 84.00
10381-00 2 BLOCK – filler – No. 1 drag strut – front spar NM!
U11722-000 1 BRACKET ASSEMBLY – aileron bellcrank – LH 672.44
U11722-001 1 BRACKET ASSEMBLY – aileron bellcrank – RH 672.44

U11672-000 2 BRACKET ASSEMBLY – flap bellcrank 73.17
U10912-004 8 BRACKET ASSEMBLY – No. 1, 2, 3, and 5 flap and aileron hinge 140.12
U10921-000 10 BLOCK – No. 1, 2, 3, and 5 flap and aileron bearing 27.54
U12482-000 2 BRACKET ASSEMBLY – No. 4 aileron hinge (at strut point) 138.96
U10921-000 10 BLOCK – No. 4 aileron hinge bearing 27.54
80581-00 2 BRACKET ASSEMBLY – wing navigation light (at wing tip bow) NM!
