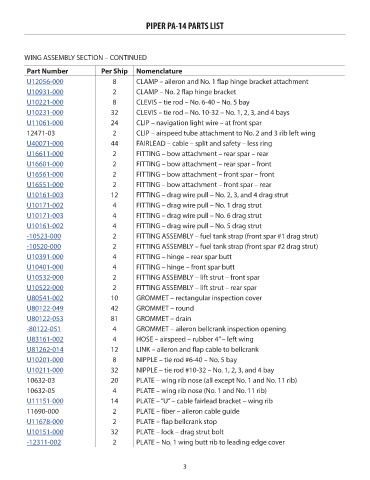

PIPER PA-14 PARTS LIST

WING ASSEMBLY SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
U12056-000 8 CLAMP – aileron and No. 1 flap hinge bracket attachment 15.97
U10931-000 2 CLAMP – No. 2 flap hinge bracket 33.89
U10221-000 8 CLEVIS – tie rod – No. 6-40 – No. 5 bay 19.54
U10231-000 32 CLEVIS – tie rod – No. 10-32 – No. 1, 2, 3, and 4 bays 57.90
U11061-000 24 CLIP – navigation light wire – at front spar 8.53
12471-03 2 CLIP – airspeed tube attachment to No. 2 and 3 rib left wing NM!

U40071-000 44 FAIRLEAD – cable – split and safety – less ring 1.45
U16611-000 2 FITTING – bow attachment – rear spar – rear 13.13
U16601-000 2 FITTING – bow attachment – rear spar – front 17.16
U16561-000 2 FITTING – bow attachment – front spar – front 17.00
U16551-000 2 FITTING – bow attachment – front spar – rear 23.50
U10161-003 12 FITTING – drag wire pull – No. 2, 3, and 4 drag strut 17.24
U10171-002 4 FITTING – drag wire pull – No. 1 drag strut 8.03

U10171-003 4 FITTING – drag wire pull – No. 6 drag strut 8.03
U10161-002 4 FITTING – drag wire pull – No. 5 drag strut 17.24
-10523-000 2 FITTING ASSEMBLY – fuel tank strap (front spar #1 drag strut) 72.61
-10520-000 2 FITTING ASSEMBLY – fuel tank strap (front spar #2 drag strut) 72.61
U10391-000 4 FITTING – hinge – rear spar butt 64.70
U10401-000 4 FITTING – hinge – front spar butt 50.54
U10532-000 2 FITTING ASSEMBLY – lift strut – front spar 146.95
U10522-000 2 FITTING ASSEMBLY – lift strut – rear spar 132.51
U80541-002 10 GROMMET – rectangular inspection cover 16.33

U80122-049 42 GROMMET – round 6.28
U80122-053 81 GROMMET – drain 4.52
-80122-051 4 GROMMET – aileron bellcrank inspection opening 4.37
U83161-002 4 HOSE – airspeed – rubber 4” – left wing 7.77
U81262-014 12 LINK – aileron and flap cable to bellcrank 6.95
U10201-000 8 NIPPLE – tie rod #6-40 – No. 5 bay 12.94
U10211-000 32 NIPPLE – tie rod #10-32 – No. 1, 2, 3, and 4 bay 49.91

10632-03 20 PLATE – wing rib nose (all except No. 1 and No. 11 rib) NM!
10632-05 4 PLATE – wing rib nose (No. 1 and No. 11 rib) NM!
U11151-000 14 PLATE – “U” – cable fairlead bracket – wing rib 9.88
11690-000 2 PLATE – fiber – aileron cable guide NM!
U11678-000 2 PLATE – flap bellcrank stop 24.14
U10151-000 32 PLATE – lock – drag strut bolt 3.40
-12311-002 2 PLATE – No. 1 wing butt rib to leading edge cover 120.15
