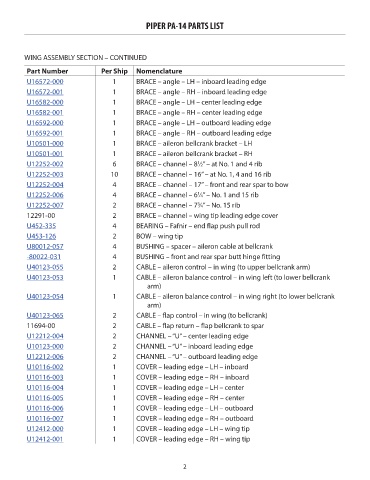

PIPER PA-14 PARTS LIST

WING ASSEMBLY SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
U16572-000 1 BRACE – angle – LH – inboard leading edge 45.08
U16572-001 1 BRACE – angle – RH – inboard leading edge 45.08
U16582-000 1 BRACE – angle – LH – center leading edge 46.46
U16582-001 1 BRACE – angle – RH – center leading edge 46.46
U16592-000 1 BRACE – angle – LH – outboard leading edge 37.70
U16592-001 1 BRACE – angle – RH – outboard leading edge 37.70

U10501-000 1 BRACE – aileron bellcrank bracket – LH 89.47
U10501-001 1 BRACE – aileron bellcrank bracket – RH 89.47
U12252-002 6 BRACE – channel – 8 ⁄2” – at No. 1 and 4 rib 14.33
1
U12252-003 10 BRACE – channel – 16” – at No. 1, 4 and 16 rib 18.60
U12252-004 4 BRACE – channel – 17” – front and rear spar to bow 14.33
U12252-006 4 BRACE – channel – 6 ⁄4” – No. 1 and 15 rib 15.54
1
U12252-007 2 BRACE – channel – 7 ⁄4” – No. 15 rib 14.33
3
12291-00 2 BRACE – channel – wing tip leading edge cover NM!
U452-335 4 BEARING – Fafnir – end flap push pull rod 51.72
U453-126 2 BOW – wing tip 50.86
U80012-057 4 BUSHING – spacer – aileron cable at bellcrank 7.43
-80022-031 4 BUSHING – front and rear spar butt hinge fitting 13.74
U40123-055 2 CABLE – aileron control – in wing (to upper bellcrank arm) 141.25
U40123-053 1 CABLE – aileron balance control – in wing left (to lower bellcrank 143.64
arm)
U40123-054 1 CABLE – aileron balance control – in wing right (to lower bellcrank 147.71
arm)
U40123-065 2 CABLE – flap control – in wing (to bellcrank) 134.02
11694-00 2 CABLE – flap return – flap bellcrank to spar NM!
U12212-004 2 CHANNEL – “U” – center leading edge 83.60
U10123-000 2 CHANNEL – “U” – inboard leading edge 158.94

U12212-006 2 CHANNEL – “U” – outboard leading edge 49.62
U10116-002 1 COVER – leading edge – LH – inboard 138.47
U10116-003 1 COVER – leading edge – RH – inboard 147.05
U10116-004 1 COVER – leading edge – LH – center 176.21
U10116-005 1 COVER – leading edge – RH – center 166.81
U10116-006 1 COVER – leading edge – LH – outboard 153.55
U10116-007 1 COVER – leading edge – RH – outboard 137.42

U12412-000 1 COVER – leading edge – LH – wing tip 242.50
U12412-001 1 COVER – leading edge – RH – wing tip 272.59
