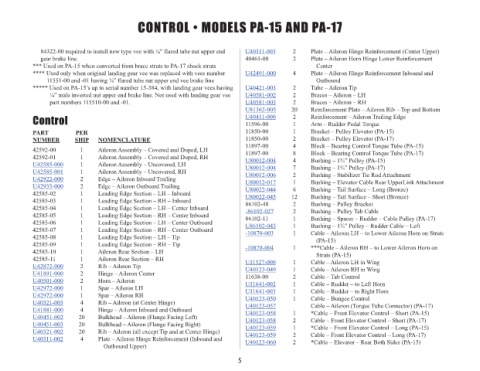

Page 10 - Piper PA-15/PA-17 Parts Catalog

CONTROL • MODELS PA-15 AND PA-17

84322-00 required to install new type vee with ¼” flared tube nut upper end U40311-003 2 Plate – Aileron Hinge Reinforcement (Center Upper)
gear brake line. 40461-00 2 Plate – Aileron Horn Hinge Lower Reinforcement
*** Used on PA-15 when converted from brace struts to PA-17 shock struts Center
**** Used only when original landing gear vee was replaced with vees number U42491-000 4 Plate – Aileron Hinge Reinforcement Inbound and
11551-00 and -01 having ¼” flared tube nut upper end vee brake line Outbound
***** Used on PA-15’s up to serial number 15-384, with landing gear vees having U40421-003 2 Tube – Aileron Tip
¼” male inverted nut upper end brake line. Not used with landing gear vee U40581-002 2 Braces – Aileron – LH
part numbers 115510-00 and -01. U40581-003 2 Braces – Aileron – RH
U81362-005 20 Reinforcement Plate – Aileron Rib – Top and Bottom
Control U40411-000 2 Reinforcement – Aileron Trailing Edge
1
11596-00
Arm – Rudder Pedal Torque
PART PER 11850-00 1 Bracket – Pulley Elevator (PA-15)
NUMBER SHIP NOMENCLATURE 11850-00 2 Bracket – Pulley Elevator (PA-17)
42592-00 1 Aileron Assembly – Covered and Doped, LH 11897-00 4 Block – Bearing Control Torque Tube (PA-15)
Block – Bearing Control Torque Tube (PA-17)
8
11897-00
42592-01 1 Aileron Assembly – Covered and Doped, RH U80012-004 4 Bushing – 1¾” Pulley (PA-15)
U42585-000 1 Aileron Assembly – Uncovered, LH U80012-004 7 Bushing – 1¾” Pulley (PA-17)
U42585-001 1 Aileron Assembly – Uncovered, RH U80012-006 2 Bushing – Stabilizer Tie Rod Attachment
U42922-000 2 Edge – Aileron Inboard Trailing U80012-017 1 Bushing – Elevator Cable Rear UpperLink Attachment
U42933-000 2 Edge – Aileron Outboard Trailing U80022-044 6 Bushing – Tail Surface – Long (Bronze)
42585-02 1 Leading Edge Section – LH – Inboard U80022-045 12 Bushing – Tail Surface – Short (Bronze)
42585-03 1 Leading Edge Section – RH – Inboard 86102-48 2 Bushing – Pulley Bracket
42585-04 1 Leading Edge Section – LH – Center Inboard -86102-027 2 Bushing – Pulley Tab Cable
42585-05 1 Leading Edge Section – RH – Center Inboard 86102-11 1 Bushing – Spacer – Rudder – Cable Pulley (PA-17)
42585-06 1 Leading Edge Section – LH – Center Outboard U86102-043 1 Bushing – 1¾” Pulley – Rudder Cable – Left
42585-07 1 Leading Edge Section – RH – Center Outboard -10870-003 1 Cable – Aileron LH – to Lower Aileron Horn on Struts
42585-08 1 Leading Edge Section – LH – Tip (PA-15)
42585-09 1 Leading Edge Section – RH – Tip -10870-004 1 ***Cable – Aileron RH – to Lower Aileron Horn on
42585-10 1 Aileron Rear Section – LH Struts (PA-15)
42585-11 1 Aileron Rear Section – RH U11527-000 1 Cable – Aileron LH in Wing
U42872-000 2 Rib – Aileron Tip U40123-049 1 Cable – Aileron RH in Wing
U41891-000 2 Hinge – Aileron Center 11638-00 2 Cable – Tab Control
U40501-000 2 Horn – Aileron U11641-002 1 Cable – Rudder – to Left Horn
U42972-000 1 Spar – Aileron LH U11641-003 1 Cable – Rudder – to Right Horn
U42972-000 1 Spar – Aileron RH U40123-050 1 Cable – Bungee Control
U40321-003 4 Rib – Aileron (at Center Hinge) U40123-057 Cable – Aileron (Torque Tube Connector) (PA-17)
U41881-000 4 Hinge – Aileron Inboard and Outboard U40123-058 1 *Cable – Front Elevator Control – Short (PA-15)
U40451-002 20 Bulkhead – Aileron (Flange Facing Left) U40123-058 2 Cable – Front Elevator Control – Short (PA-17)
U40451-003 20 Bulkhead – Aileron (Flange Facing Right) U40123-059 1 *Cable – Front Elevator Control – Long (PA-15)
U40321-002 20 Rib – Aileron (all except Tip and at Center Hinge) U40123-059 2 Cable – Front Elevator Control – Long (PA-17)
U40311-002 4 Plate – Aileron Hinge Reinforcement (Inbound and U40123-060 2 *Cable – Elevator – Rear Both Sides (PA-15)
Outbound Upper)

5
