Page 9 - Piper PA-15/PA-17 Parts Catalog

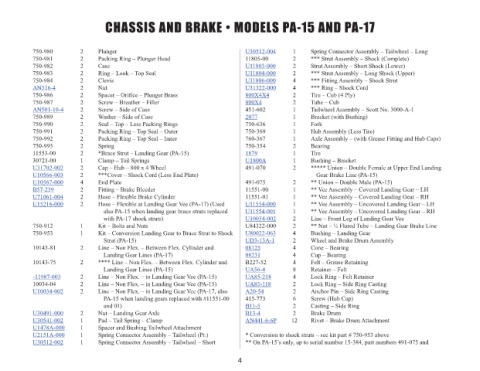

CHASSIS AND BRAKE • MODELS PA-15 AND PA-17

750-980 2 Plunger U30512-004 1 Spring Connector Assembly – Tailwheel – Long
750-981 2 Packing Ring – Plunger Head 11805-00 2 *** Strut Assembly – Shock (Complete)
750-982 2 Case U11803-000 2 Strut Assembly – Short Shock (Lower)
750-983 2 Ring – Look – Top Seal U11804-000 2 *** Strut Assembly – Long Shock (Upper)
750-984 2 Clevis U11806-000 4 *** Fitting Assembly – Shock Strut
AN316-4 2 Nut U31322-000 4 *** Ring – Shock Cord
750-986 2 Spacer – Orifice – Plunger Brass 800X4X4 2 Tire – Cub (4 Ply)
750-987 2 Screw – Breather – Filler 800X4 2 Tube – Cub
AN501-10-4 2 Screw – Side of Case 451-602 1 Tailwheel Assembly – Scott No. 3000-A-1
750-989 2 Washer – Side of Case 2077 1 Bracket (with Bushing)
750-990 2 Seal – Top – Less Packing Rings 750-636 1 Fork
750-991 2 Packing Ring – Top Seal – Outer 750-369 1 Hub Assembly (Less Tire)
750-992 2 Packing Ring – Top Seal – Inner 760-367 1 Axle Assembly – (with Grease Fitting and Hub Caps)
750-993 2 Spring 750-354 2 Bearing
11553-00 2 *Brace Strut – Landing Gear (PA-15) 1879 1 Tire
30721-00 1 Clamp – Tail Springs U1800A 1 Bushing – Bracket
U31702-002 2 Cap – Hub – 800 x 4 Wheel 491-070 2 ***** Union – Double Female at Upper End Landing
U10566-003 2 ***Cover – Shock Cord (Less End Plate) Gear Brake Line (PA-15)
U10567-000 4 End Plate 491-075 2 ** Union – Double Male (PA-15)
B57-239 2 Fitting – Brake Bleeder 11551-00 1 ** Vee Assembly – Covered Landing Gear – LH
U71061-004 2 Hose – Flexible Brake Cylinder 11551-01 1 ** Vee Assembly – Covered Landing Gear – RH
U15216-000 2 Hose – Flexible at Landing Gear Vee (PA-17) (Used U11554-000 1 ** Vee Assembly – Uncovered Landing Gear – LH
also PA-15 when landing gear brace struts replaced U11554-001 1 ** Vee Assembly – Uncovered Landing Gear – RH
with PA-17 shock struts) U10034-002 2 Line – Front Leg of Landing Gear Vee
750-912 1 Kit – Bolts and Nuts U84322-000 2 ** Nut – ¼ Flared Tube – Landing Gear Brake Line
750-953 1 Kit – Conversion Landing Gear to Brace Strut to Shock U80022-063 4 Bushing – Landing Gear
Strut (PA-15) UD3-13A-1 2 Wheel and Brake Drum Assembly
10143-81 2 Line – Non Flex. – Between Flex. Cylinder and 08125 4 Cone – Bearing
Landing Gear Lines (PA-17) 08231 4 Cup – Bearing
10143-75 2 **** Line – Non Flex. – Between Flex. Cylinder and B227-52 4 Felt – Grease Retaining
Landing Gear Lines (PA-15) UA56-4 8 Retainer – Felt
-11987-003 2 Line – Non Flex. – to Landing Gear Vee (PA-15) UA85-218 4 Lock Ring – Felt Retainer
10034-04 2 Line – Non Flex. – in Landing Gear Vee (PA-15) UA85-118 2 Lock Ring – Side Ring Casting
U10034-002 2 Line – Non Flex. – in Landing Gear Vee (PA-17, also A20-54 2 Anchor Pin – Side Ring Casting
PA-15 when landing gears replaced with #11551-00 415-773 6 Screw (Hub Cap)
and 01) B11-5 2 Casting – Side Ring
U30491-000 2 Nut – Landing Gear Axle B13-4 2 Brake Drum
U30541-002 1 Pad – Tail Spring – Clamp AN441-6-6P 12 Rivet – Brake Drum Attachment
U1478A-000 1 Spacer and Bushing Tailwheel Attachment
U2151A-000 1 Spring Connector Assembly – Tailwheel (Pr.) * Conversion to shock struts – see kit part # 750-953 above
U30512-002 1 Spring Connector Assembly – Tailwheel – Short ** On PA-15’s only, up to serial number 15-384, part numbers 491-075 and
