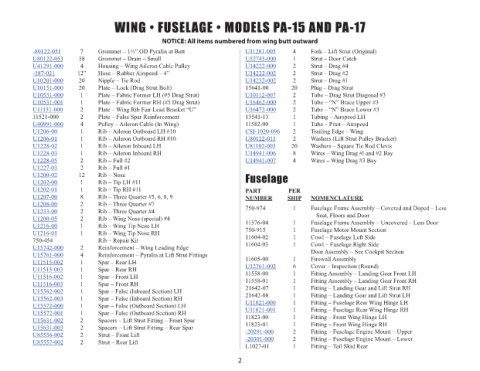

WING • FUSELAGE • MODELS PA-15 AND PA-17

NOTICE: All items numbered from wing butt outward
-80122-051 7 Grommet – 1½” OD Pyralin at Butt U11281-005 4 Fork – Lift Strut (Original)
U80122-053 58 Grommet – Drain – Small U52745-000 1 Strut – Door Catch
U41291-000 4 Housing – Wing Aileron Cable Pulley U14222-000 2 Strut – Drag #4
-187-021 12” Hose – Rubber Airspeed – 4” U14222-002 2 Strut – Drag #2
U10201-000 20 Nipple – Tie Rod U14232-002 2 Strut – Drag #1
U10151-000 20 Plate – Lock (Drag Strut Bolt) 15641-00 20 Plug – Drag Strut
U10531-000 1 Plate – Fabric Former LH (#5 Drag Strut) U10112-007 2 Tube – Drag Strut Diagonal #3
U10531-001 1 Plate – Fabric Former RH (#5 Drag Strut) U16462-000 2 Tube – “N” Brace Upper #3
U11151-000 2 Plate – Wing Rib Fair Lead Bracket “U” U16472-000 2 Tube – “N” Brace Lower #3
11521-000 2 Plate – False Spar Reinforcement 13541-13 1 Tubing – Airspeed LH
U40991-000 4 Pulley – Aileron Cable (In Wing) 11582-00 1 Tube – Pitot – Airspeed
U1206-00 1 Rib – Aileron Outboard LH #10 CSI-1020-096 2 Trailing Edge – Wing
U1206-01 1 Rib – Aileron Outboard RH #10 U80122-011 2 Washers (Lift Strut Pulley Bracket)
U1228-02 1 Rib – Aileron Inboard LH U81102-003 20 Washers – Square Tie Rod Clevis
U1228-03 1 Rib – Aileron Inboard RH U14941-006 8 Wires – Wing Drag #l and #2 Bay
U1228-05 2 Rib – Full #2 U14941-007 4 Wires – Wing Drag #3 Bay
U1227-03 2 Rib – Full #1
U1200-02 12 Rib – Nose Fuselage
U1202-00 1 Rib – Tip LH #11
U1202-01 1 Rib – Tip RH #11 PART PER
U1207-00 8 Rib – Three Quarter #5, 6, 8, 9 NUMBER SHIP NOMENCLATURE
U1208-00 2 Rib – Three Quarter #7
U1233-00 2 Rib – Three Quarter #4 750-974 1 Fuselage Frame Assembly – Covered and Doped – Less
U1200-05 2 Rib – Wing Nose (special) #4 Seat, Floors and Door
U1216-00 1 Rib – Wing Tip Nose LH 11576-04 1 Fuselage Frame Assembly – Uncovered – Less Door
U1216-01 1 Rib – Wing Tip Nose RH 750-915 1 Fuselage Motor Mount Section
750-454 Rib – Repair Kit 11604-02 1 Cowl – Fuselage Left Side
U15742-000 2 Reinforcement – Wing Leading Edge 11604-03 1 Cowl – Fuselage Right Side
U15761-000 4 Reinforcement – Pyralin at Lift Strut Fittings Door Assembly – See Cockpit Section
U11515-002 1 Spar – Rear LH 11605-00 1 Firewall Assembly
U11515-003 1 Spar – Rear RH U12761-002 6 Cover – Inspection (Round)
U11516-002 1 Spar – Front LH 11558-00 1 Fitting Assembly – Landing Gear Front LH
U11516-003 1 Spar – Front RH 11558-01 1 Fitting Assembly – Landing Gear Front RH
U15562-002 1 Spar – False (Inboard Section) LH 21642-07 1 Fitting – Landing Gear and Lift Strut RH
U15562-003 1 Spar – False (Inboard Section) RH 21642-08 1 Fitting – Landing Gear and Lift Strut LH
U15572-000 1 Spar – False (Outboard Section) LH U11821-000 1 Fitting – Fuselage Rear Wing Hinge LH
U15572-001 1 Spar – False (Outboard Section) RH U11821-001 1 Fitting – Fuselage Rear Wing Hinge RH
U15631-002 2 Spacers – Lift Strut Fitting – Front Spar 11823-00 1 Fitting – Front Wing Hinge LH
U15631-003 2 Spacers – Lift Strut Fitting – Rear Spar 11823-01 1 Fitting – Front Wing Hinge RH
U85556-002 2 Strut – Front Lift -20291-000 2 Fitting – Fuselage Engine Mount – Upper
U85557-002 2 Strut – Rear Lift -20301-000 2 Fitting – Fuselage Engine Mount – Lower
L1027-01 1 Fitting – Tail Skid Rear
