Page 6 - Piper PA-15/PA-17 Parts Catalog

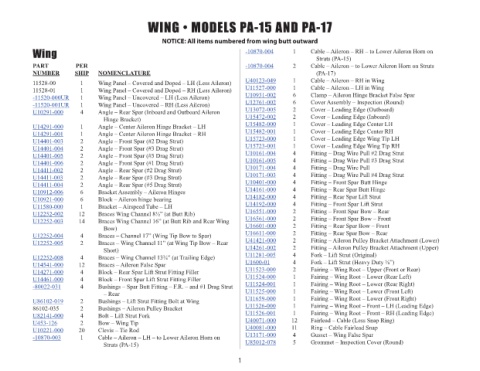

WING • MODELS PA-15 AND PA-17

NOTICE: All items numbered from wing butt outward
Wing Wing -10870-004 1 Cable – Aileron – RH – to Lower Aileron Horn on
Struts (PA-15)
PART PER -10870-004 2 Cable – Aileron – to Lower Aileron Horn on Struts
NUMBER SHIP NOMENCLATURE (PA-17)
11528-00 ...................NM! 11528-00 1 Wing Panel – Covered and Doped – LH (Less Aileron) U40123-049 1 Cable – Aileron – RH in Wing
11528-01 ...................NM! 11528-01 1 Wing Panel – Covered and Doped – RH (Less Aileron) U11527-000 1 Cable – Aileron – LH in Wing
-11520-000UR ..........NM! -11520-000UR 1 Wing Panel – Uncovered – LH (Less Aileron) U10931-002 6 Clamp – Aileron Hinge Bracket False Spar
-11520-001UR .....9629.07 -11520-001UR 1 Wing Panel – Uncovered – RH (Less Aileron) U12761-002 6 Cover Assembly – Inspection (Round)
U10291-000 .............26.29 U10291-000 4 Angle – Rear Spar (Inboard and Outboard Aileron U13072-005 2 Cover – Leading Edge (Outboard)
Hinge Bracket) U15472-002 2 Cover – Leading Edge (Inboard)
U14291-000 .............23.54 U14291-000 1 Angle – Center Aileron Hinge Bracket – LH U15482-000 1 Cover – Leading Edge Center LH
U14291-001 .............23.13 U14291-001 1 Angle – Center Aileron Hinge Bracket – RH U15482-001 1 Cover – Leading Edge Center RH
U14401-003 .............26.11 U14401-003 2 Angle – Front Spar (#2 Drag Strut) U15723-000 1 Cover – Leading Edge Wing Tip LH
U14401-004 .............14.49 U14401-004 2 Angle – Front Spar (#3 Drag Strut) U15723-001 1 Cover – Leading Edge Wing Tip RH
U14401-005 .............27.08 U14401-005 2 Angle – Front Spar (#5 Drag Strut) U10161-004 4 Fitting – Drag Wire Pull #2 Drag Strut
U14401-006 .............11.75 U14401-006 2 Angle – Front Spar (#1 Drag Strut) U10161-005 4 Fitting – Drag Wire Pull #3 Drag Strut
U14411-002 .............15.05 U14411-002 2 Angle – Rear Spar (#2 Drag Strut) U10171-004 4 Fitting – Drag Wire Pull
U14411-003 .............19.06 U14411-003 2 Angle – Rear Spar (#3 Drag Strut) U10171-003 4 Fitting – Drag Wire Pull #4 Drag Strut
U14411-004 .............14.05 U14411-004 2 Angle – Rear Spar (#5 Drag Strut) U10401-000 4 Fitting – Front Spar Butt Hinge
U10912-006 ...........117.22 U10912-006 6 Bracket Assembly – Aileron Hinges U14161-000 4 Fitting – Rear Spar Butt Hinge
U10921-000 .............27.54 U10921-000 6 Block – Aileron hinge bearing U14182-000 4 Fitting – Rear Spar Lift Strut
U11580-000 .............20.28 U11580-000 1 Bracket – Airspeed Tube – LH U14192-000 4 Fitting – Front Spar Lift Strut
U12252-002 .............14.33 U12252-002 12 Braces Wing Channel 8½” (at Butt Rib) U16551-000 2 Fitting – Front Spar Bow – Rear
U12252-003 .............18.60 U12252-003 14 Braces Wing Channel 16” (at Butt Rib and Rear Wing U16561-000 2 Fitting – Front Spar Bow – Front
Bow) U16601-000 2 Fitting – Rear Spar Bow – Front
U12252-004 .............14.33 U12252-004 4 Braces – Channel 17” (Wing Tip Bow to Spar) U16611-000 2 Fitting – Rear Spar Bow – Rear
U12252-005 .............14.33 U12252-005 2 Braces – Wing Channel 11” (at Wing Tip Bow – Rear U41421-000 2 Fitting – Aileron Pulley Bracket Attachment (Lower)
Short) U14261-002 2 Fitting – Aileron Pulley Bracket Attachment (Upper)
U12252-008 .............16.85 U12252-008 4 Braces – Wing Channel 13¾” (at Trailing Edge) U11281-005 4 Fork – Lift Strut (Original)
U14541-000 .............63.61 U14541-000 12 Braces – Aileron False Spar U1600-01 4 Fork – Lift Strut (Heavy Duty ⅝”)
U14271-000 .............41.21 U14271-000 4 Block – Rear Spar Lift Strut Fitting Filler U11523-000 2 Fairing – Wing Root – Upper (Front or Rear)
U14461-000 .............56.02 U14461-000 4 Block – Front Spar Lift Strut Fitting Filler U11524-000 1 Fairing – Wing Root – Lower (Rear Left)
-80022-031 ...............13.74 -80022-031 4 Bushings – Spar Butt Fitting – F.R. – and #1 Drag Strut U11524-001 1 Fairing – Wing Root – Lower (Rear Right)
– Rear U11525-000 1 Fairing – Wing Root – Lower (Front Left)
U86102-019 .............20.10 U86102-019 2 Bushings – Lift Strut Fitting Bolt at Wing U11659-000 1 Fairing – Wing Root – Lower (Front Right)
86102-035 .................NM! 86102-035 2 Bushings – Aileron Pulley Bracket U11526-000 1 Fairing – Wing Root – Front – LH (Leading Edge)
U82141-000 .............29.11 U82141-000 4 Bolt – Lift Strut Fork U11526-001 1 Fairing – Wing Root – Front – RH (Leading Edge)
U453-126 .................50.86 U453-126 2 Bow – Wing Tip U40071-000 12 Fairlead – Cable (Less Snap Ring)
U10221-000 .............19.54 U10221-000 20 Clevis – Tie Rod U40081-000 11 Ring – Cable Fairlead Snap
-10870-003 .............131.04 -10870-003 1 Cable – Aileron – LH – to Lower Aileron Horn on U13171-000 4 Gusset – Wing False Spar
Struts (PA-15) U85012-078 5 Grommet – Inspection Cover (Round)

1
