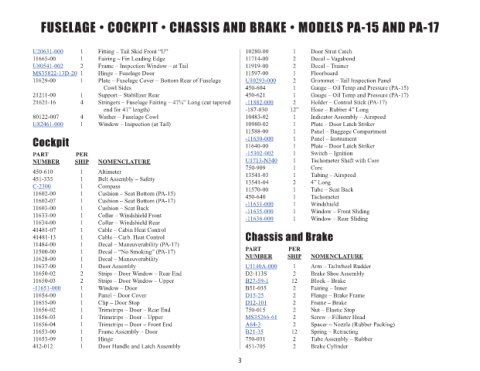

FUSELAGE • COCKPIT • CHASSIS AND BRAKE • MODELS PA-15 AND PA-17

U20631-000 1 Fitting – Tail Skid Front “U” 10280-00 1 Door Strut Catch
11665-00 1 Fairing – Fin Leading Edge 11714-00 2 Decal – Vagabond
U80541-002 2 Frame – Inspection Window – at Tail 11919-00 2 Decal – Trainer
MS35822-13D-20 1 Hinge – Fuselage Door 11597-00 1 Floorboard
11629-00 1 Plate – Fuselage Cover – Bottom Rear of Fuselage U10293-000 2 Grommet – Tail Inspection Panel
Cowl Sides 450-604 1 Gauge – Oil Temp and Pressure (PA-15)
21211-00 1 Support – Stabilizer Rear 450-621 1 Gauge – Oil Temp and Pressure (PA-17)
21621-16 4 Stringers – Fuselage Fairing – 47¾” Long (cut tapered -11882-000 2 Holder – Control Stick (PA-17)
end for 41” length) -187-030 12” Hose – Rubber 4” Long
80122-007 4 Washer – Fuselage Cowl 10483-02 1 Indicator Assembly – Airspeed
U82461-000 1 Window – Inspection (at Tail) 10980-02 1 Plate – Door Latch Striker
11588-00 1 Panel – Baggage Compartment
Cockpit -11630-000 1 Panel – Instrument
Plate – Door Latch Striker
11640-00
1
PART PER -15302-002 1 Switch – Ignition
NUMBER SHIP NOMENCLATURE U1713-N340 1 Tachometer Shaft with Core
450-610 1 Altimeter 750-909 1 1 Core
Tubing – Airspeed
13541-03
451-335 1 Belt Assembly – Safety 13541-04 2 4” Long
C-2300 1 Compass 11570-00 1 Tube – Seat Back
11602-00 1 Cushion – Seat Bottom (PA-15) 450-640 1 Tachometer
11602-07 1 Cushion – Seat Bottom (PA-17) -11631-000 1 Windshield
11603-00 1 Cushion – Seat Back -11635-000 1 Window – Front Sliding
11633-00 1 Collar – Windshield Front -11636-000 1 Window – Rear Sliding
11634-00 1 Collar – Windshield Rear
41481-07 1 Cable – Cabin Heat Control
41481-13 1 Cable – Carb. Heat Control Chassis and Brake
11484-00 1 Decal – Maneuverability (PA-17)
11500-00 1 Decal – “No Smoking” (PA-17) PART PER
11628-00 1 Decal – Maneuverability NUMBER SHIP NOMENCLATURE
11637-00 1 Door Assembly U1140A-000 1 Arm – Tailwheel Rudder
11650-02 2 Strips – Door Window – Rear End D2-113S 2 Brake Shoe Assembly
11650-03 2 Strips – Door Window – Upper B27-59-1 12 Block – Brake
-11651-000 1 Window – Door B51-035 2 Fairing – Inner
11654-00 1 Panel – Door Cover D15-25 2 Flange – Brake Frame
11655-00 1 Clip – Door Stop D12-101 2 Frame – Brake
11656-02 1 Trimstrips – Door – Rear End 750-015 2 Nut – Elastic Stop
11656-03 1 Trimstrips – Door – Upper MS35266-61 2 Screw – Fillister Head
11656-04 1 Trimstrips – Door – Front End A64-3 2 Spacer – Nozzle (Rubber Packing)
11653-00 1 Frame Assembly – Door B21-35 12 Spring – Retracting
11653-09 1 Hinge 750-031 2 Tube Assembly – Rubber
412-012 1 Door Handle and Latch Assembly 451-705 2 Brake Cylinder

3
