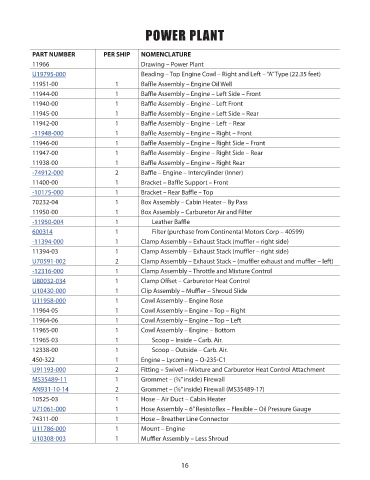

Page 19 - Piper PA-16 Clipper Parts Catalog

POWER PLANT

PART NUMBER PER SHIP NOMENCLATURE PRICES
11966 Drawing – Power Plant NM!
U19795-000 Beading – Top Engine Cowl – Right and Left – “A” Type (22.35 feet) 29.86
11951-00 1 Baffle Assembly – Engine Oil Well NM!
11944-00 1 Baffle Assembly – Engine – Left Side – Front NM!
11940-00 1 Baffle Assembly – Engine – Left Front NM!
11945-00 1 Baffle Assembly – Engine – Left Side – Rear NM!

11942-00 1 Baffle Assembly – Engine – Left – Rear NM!
-11948-000 1 Baffle Assembly – Engine – Right – Front 302.51
11946-00 1 Baffle Assembly – Engine – Right Side – Front NM!
11947-00 1 Baffle Assembly – Engine – Right Side – Rear NM!
11938-00 1 Baffle Assembly – Engine – Right Rear NM!
-74912-000 2 Baffle – Engine – Intercylinder (Inner) 49.44
11400-00 1 Bracket – Baffle Support – Front NM!
-10175-000 1 Bracket – Rear Baffle – Top 72.91
70232-04 1 Box Assembly – Cabin Heater – By Pass NM!
11950-00 1 Box Assembly – Carburetor Air and Filter NM!
-11950-004 1 Leather Baffle 17.56
600314 1 Filter (purchase from Continental Motors Corp – 40599) 109.99
-11394-000 1 Clamp Assembly – Exhaust Stack (muffler – right side) 45.13
11394-03 1 Clamp Assembly – Exhaust Stack (muffler – right side) NM!
U70591-002 2 Clamp Assembly – Exhaust Stack – (muffler exhaust and muffler – left) 38.16
-12316-000 1 Clamp Assembly – Throttle and Mixture Control 135.49
U80032-034 1 Clamp Offset – Carburetor Heat Control 30.12
U10430-000 1 Clip Assembly – Muffler – Shroud Slide 78.53
U11958-000 1 Cowl Assembly – Engine Rose 1779.76
11964-05 1 Cowl Assembly – Engine – Top – Right NM!
11964-06 1 Cowl Assembly – Engine – Top – Left NM!
11965-00 1 Cowl Assembly – Engine – Bottom NM!
11965-03 1 Scoop – Inside – Carb. Air. NM!
12338-00 1 Scoop – Outside – Carb. Air. NM!
450-322 1 Engine – Lycoming – O-235-C1 NM!
U91193-000 2 Fitting – Swivel – Mixture and Carburetor Heat Control Attachment 22.79
MS35489-11 1 Grommet – ( ⁄8” inside) Firewall 0.60
3
AN931-10-14 2 Grommet – ( ⁄8” inside) Firewall (MS35489-17) 2.00
5
10525-03 1 Hose – Air Duct – Cabin Heater NM!
U71061-000 1 Hose Assembly – 6” Resistoflex – Flexible – Oil Pressure Gauge 180.13
74311-00 1 Hose – Breather Line Connector NM!
U11786-000 1 Mount – Engine 1824.91
U10308-003 1 Muffler Assembly – Less Shroud 2343.00

16
