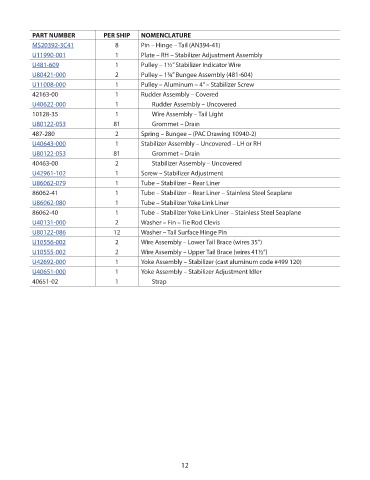

Page 15 - Piper PA-16 Clipper Parts Catalog

PART NUMBER PER SHIP NOMENCLATURE PRICE
MS20392-3C41 8 Pin – Hinge – Tail (AN394-41) 2.50
U11990-001 1 Plate – RH – Stabilizer Adjustment Assembly 39.94
U481-609 1 Pulley – 1½” Stabilizer Indicator Wire 13.13
U80421-000 2 Pulley – 1¾” Bungee Assembly (481-604) 16.17

U11008-000 1 Pulley – Aluminum – 4” – Stabilizer Screw 206.07
42163-00 1 Rudder Assembly – Covered NM!
U40622-000 1 Rudder Assembly – Uncovered 915.52
10128-35 1 Wire Assembly – Tail Light NM!
U80122-053 81 Grommet – Drain 4.52
487-280 2 Spring – Bungee – (PAC Drawing 10940-2) NM!
U40643-000 1 Stabilizer Assembly – Uncovered – LH or RH 875.23
U80122-053 81 Grommet – Drain 4.52
40463-00 2 Stabilizer Assembly – Uncovered NM!
U42961-102 1 Screw – Stabilizer Adjustment 128.23
U86062-079 1 Tube – Stabilizer – Rear Liner 107.66
86062-41 1 Tube – Stabilizer – Rear Liner – Stainless Steel Seaplane NM!
U86062-080 1 Tube – Stabilizer Yoke Link Liner 142.85
86062-40 1 Tube – Stabilizer Yoke Link Liner – Stainless Steel Seaplane NM!
U40131-000 2 Washer – Fin – Tie Rod Clevis 10.08
U80122-086 12 Washer – Tail Surface Hinge Pin 2.71
U10556-002 2 Wire Assembly – Lower Tail Brace (wires 35”) 231.11
U10555-002 2 Wire Assembly – Upper Tail Brace (wires 41½”) 231.11
U42692-000 1 Yoke Assembly – Stabilizer (cast aluminum code #499 120) 318.63
U40651-000 1 Yoke Assembly – Stabilizer Adjustment Idler 47.37
40651-02 1 Strap NM!

12
